Kyocera TASKalfa 6501i - Duplex Conveying Section

2N8/2N7
2-1-30
2-1-10 Duplex conveying section
The duplex conveying section consists of conveying path which sends the paper sent from the feedshift/
switchback section to the paper feed/conveying section when duplex printing.

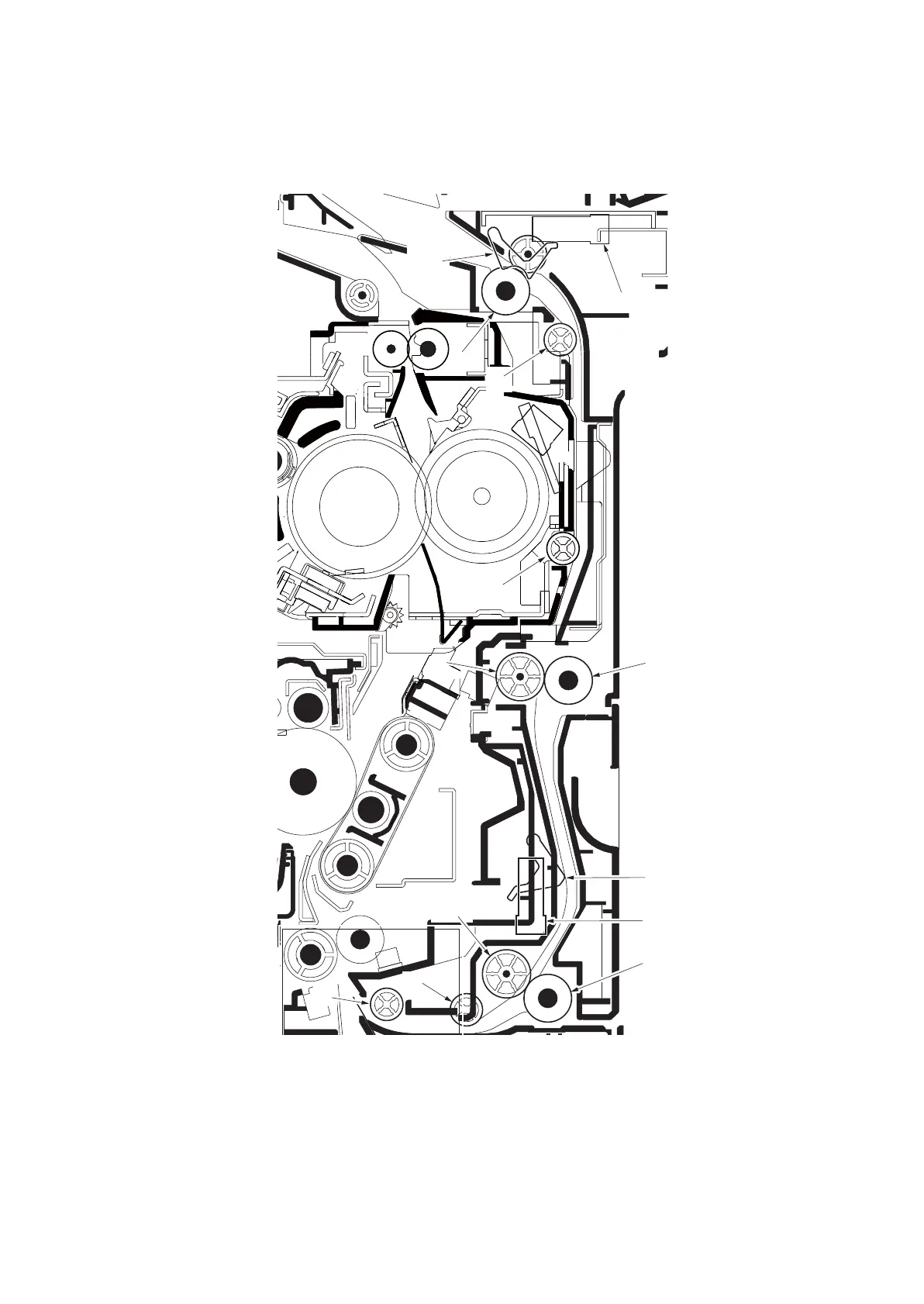

Figure 2-1-30 Duplex conveying section
6
1
4
4
2
5
9
8
3
5
7
4
4
1. Upper duplex roller
2. Middle duplex roller
3. Lower duplex roller
4. Duplex pulleys A
5. Duplex pulleys B
6. Duplex sensor 1 (DUS1)
7. Actuator (duplex sensor 1)
8. Duplex sensor 2 (DUS2)
9. Actuator (duplex sensor 2)
