Kyocera TASKalfa 6501i - Fuser Section; Detaching and Refitting the Fuser Unit

2N8/2N7
1-5-67
1-5-7 Fuser section
(1) Detaching and refitting the fuser unit
Procedure
1. Pull the paper conveying unit out.
2. Remove the screw and then the fuser
wire cover.
3. Remove two connectors

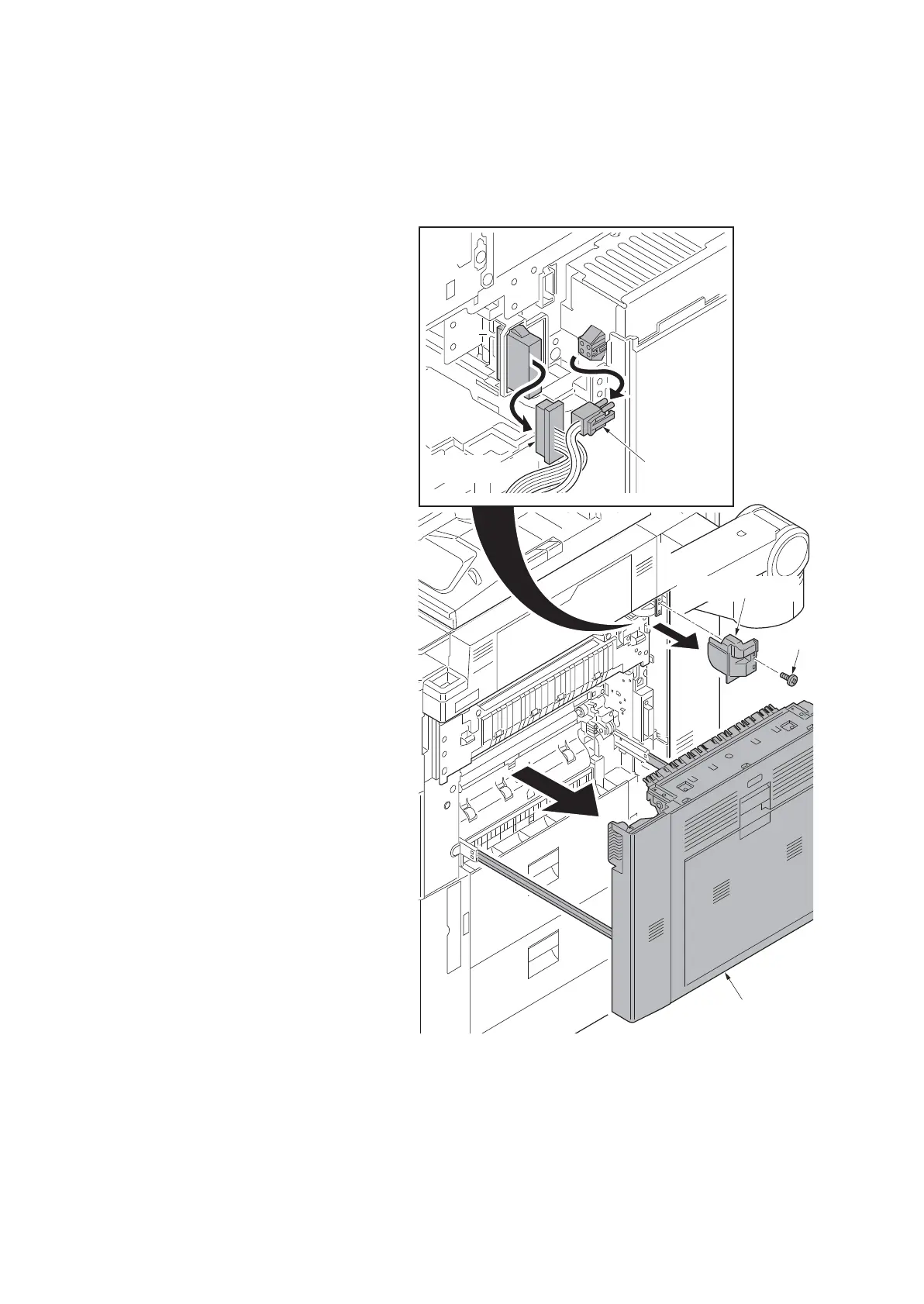

Figure 1-5-112
Screw
Connector
Paper
conveying unit
Fuser wire cover
Connector
