Kyocera TASKalfa 6501i - Detaching and Refitting the Drum Cover

2N8/2N7-2
1-5-60
(5) Detaching and refitting the drum cover
Procedure

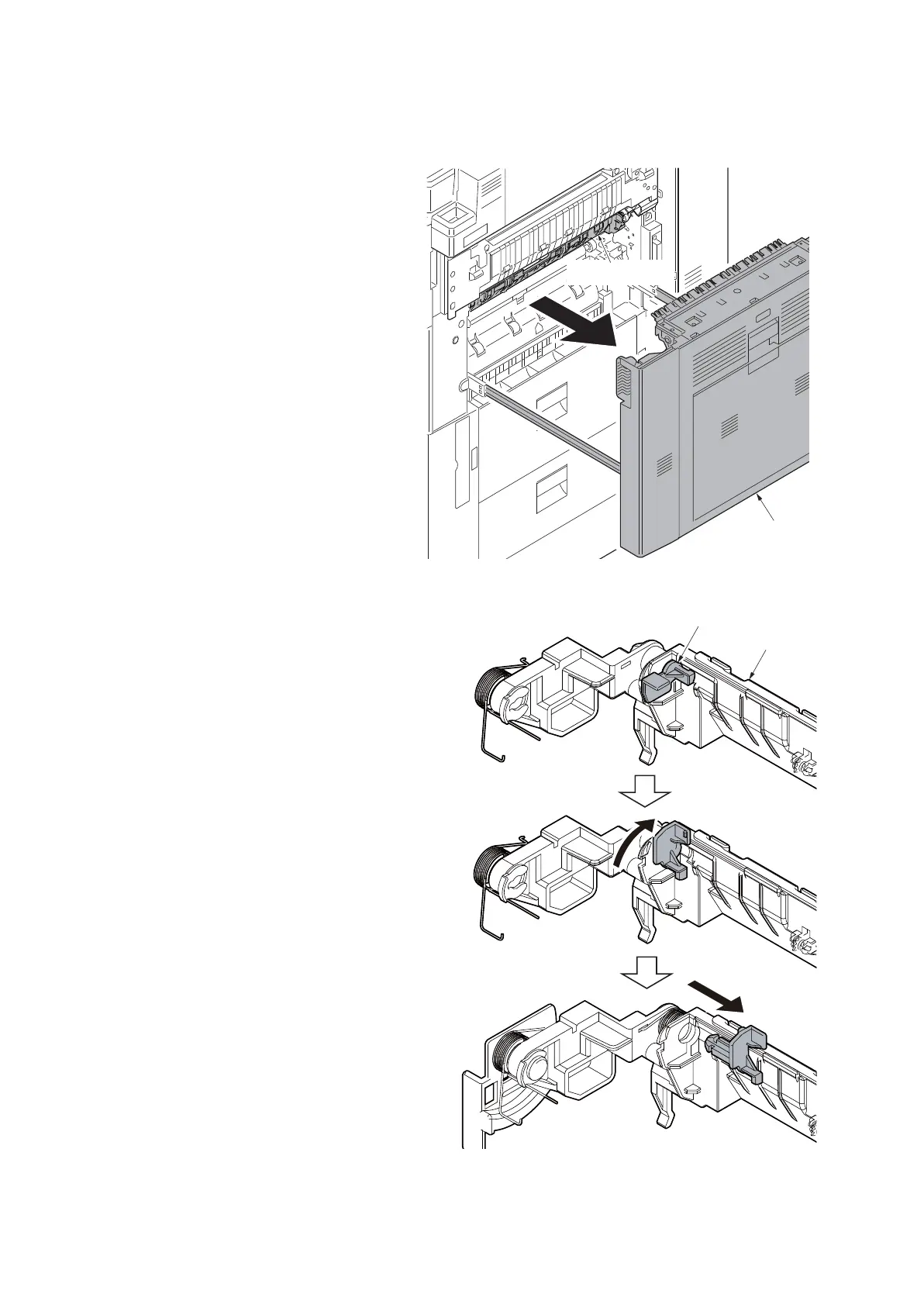

1. Pull out the paper conveying unit.
Figure 1-5-100
2. Turn the fixing pin at the front of the
drum cover 90 degrees upwards.
3. Remove the drum cover fixing pin
towards the far end
Figure 1-5-101
Paper conveying
unit
Drum cover
Drum cover
Drum cover fixing pin
