Kyocera TASKalfa 6501i - Image Formation Section; Detaching and Refitting the Inner Unit

2N8/2N7
1-5-53
1-5-5 Image formation section
(1) Detaching and refitting the inner unit
Procedure
1. Open the front upper cover.
2. Remove toner container.
3. Close the front upper cover.

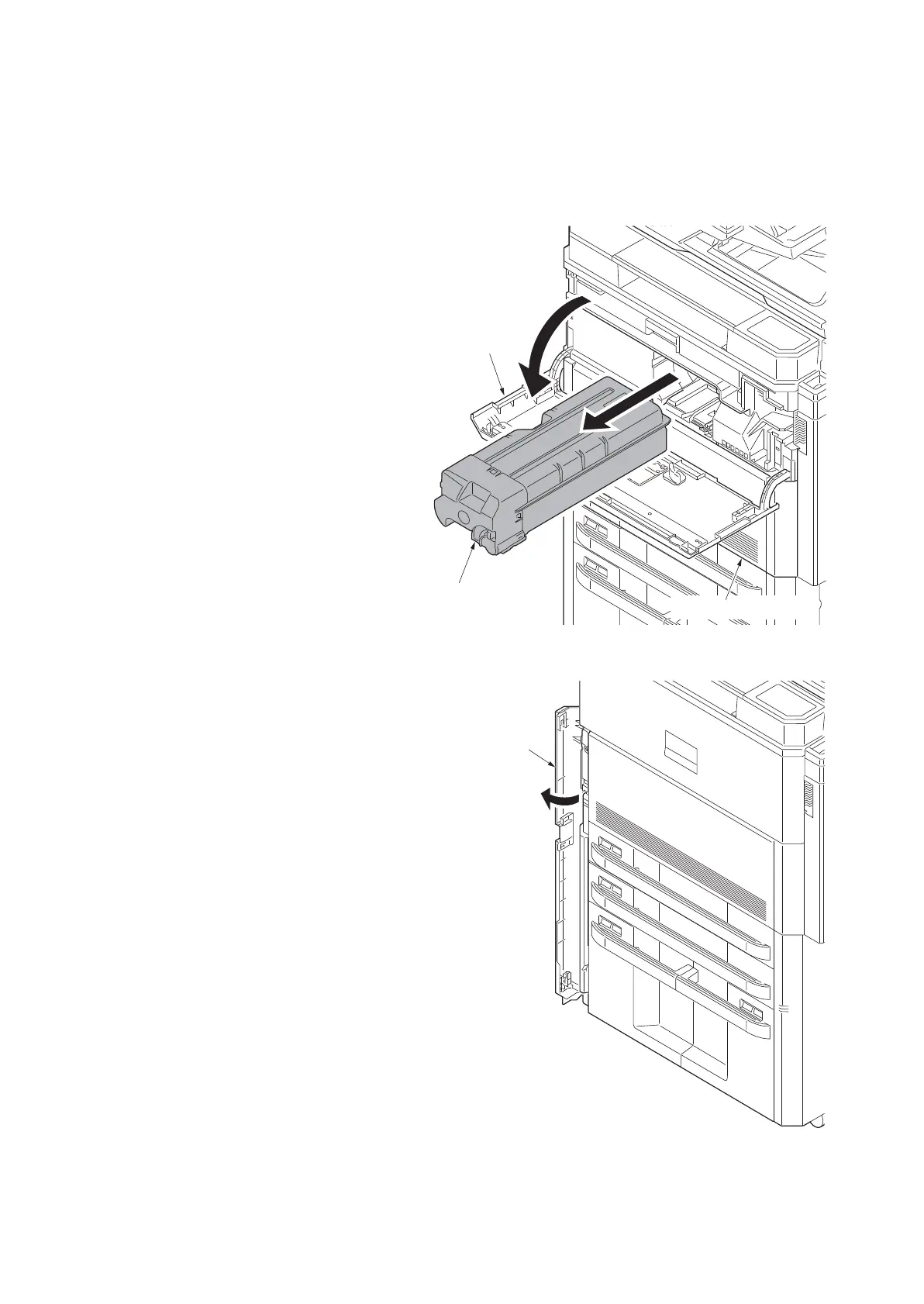

Figure 1-5-89
4. Open the waste toner box cover.
Figure 1-5-90
Front upper
cover
Toner container
Front middle cover
Waste toner
box cover
