Kyocera TASKalfa 6501i - Fitting the PHS Signal Cable and PHS Module

2N8/2N7
1-2-63

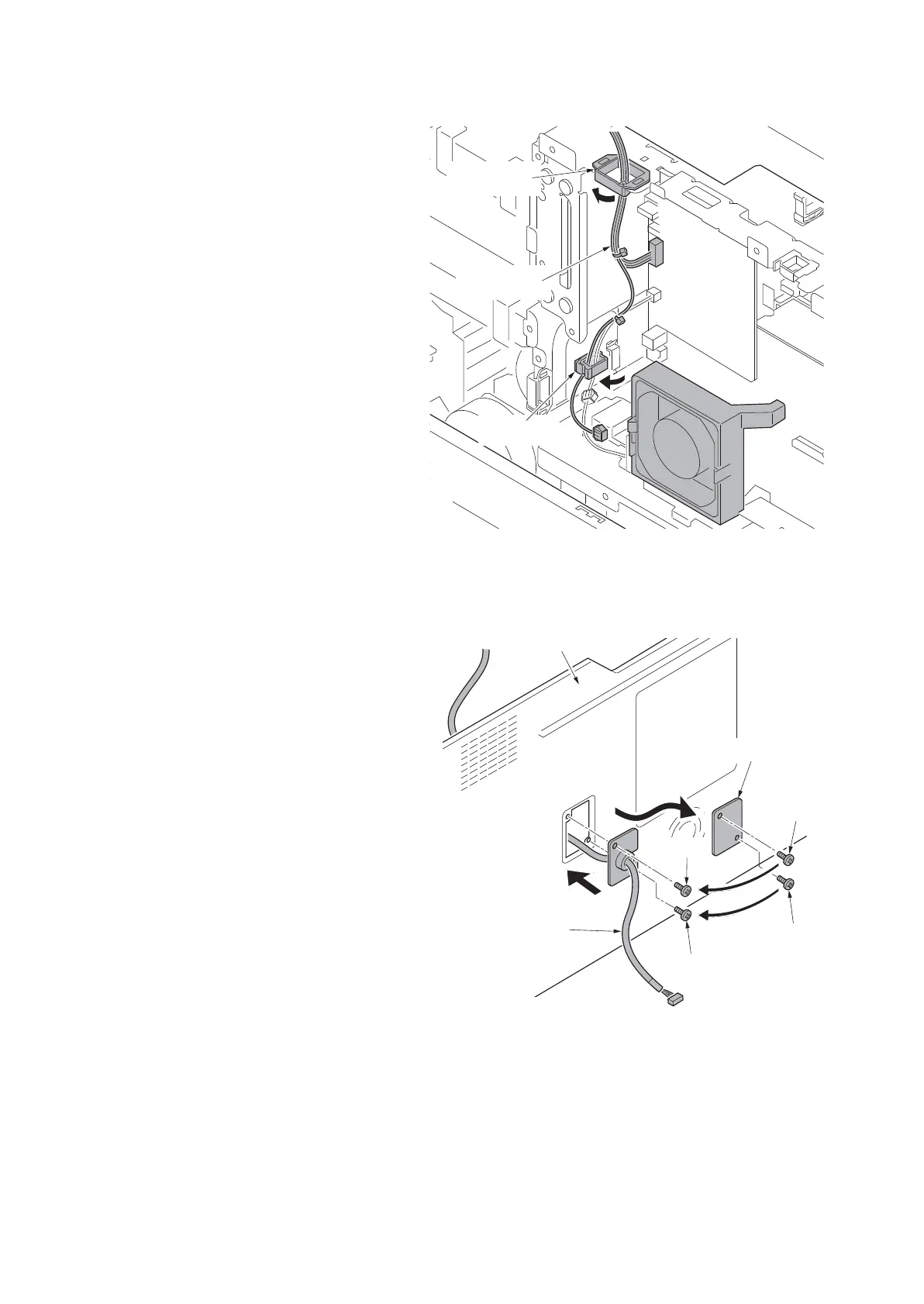

7. Pass the KMAS wire through the edging
of the controller box and wire saddle
and then fasten the KMAS wire.
Figure 1-2-93
Fitting the PHS signal cable and PHS mod-
ule
8. Remove two screws and then remove
the lid from the rear upper cover.
9. Pass the PHS signal cable through the
aperture in the rear upper cover.
10. Secure the PHS signal cable to rear
upper cover with two screws.
Figure 1-2-94
Edging
Wire saddle
KMAS wire
Screw
Screw
Screw
Screw
PHS signal cable
Lid
Rear upper cover
