2-1-7 Feedshift/switchback sections
The paper feedshift/switchback sections consists of the conveying path which sends the paper that has
passed the fuser section to the bridge section, duplex conveying section or job separator.

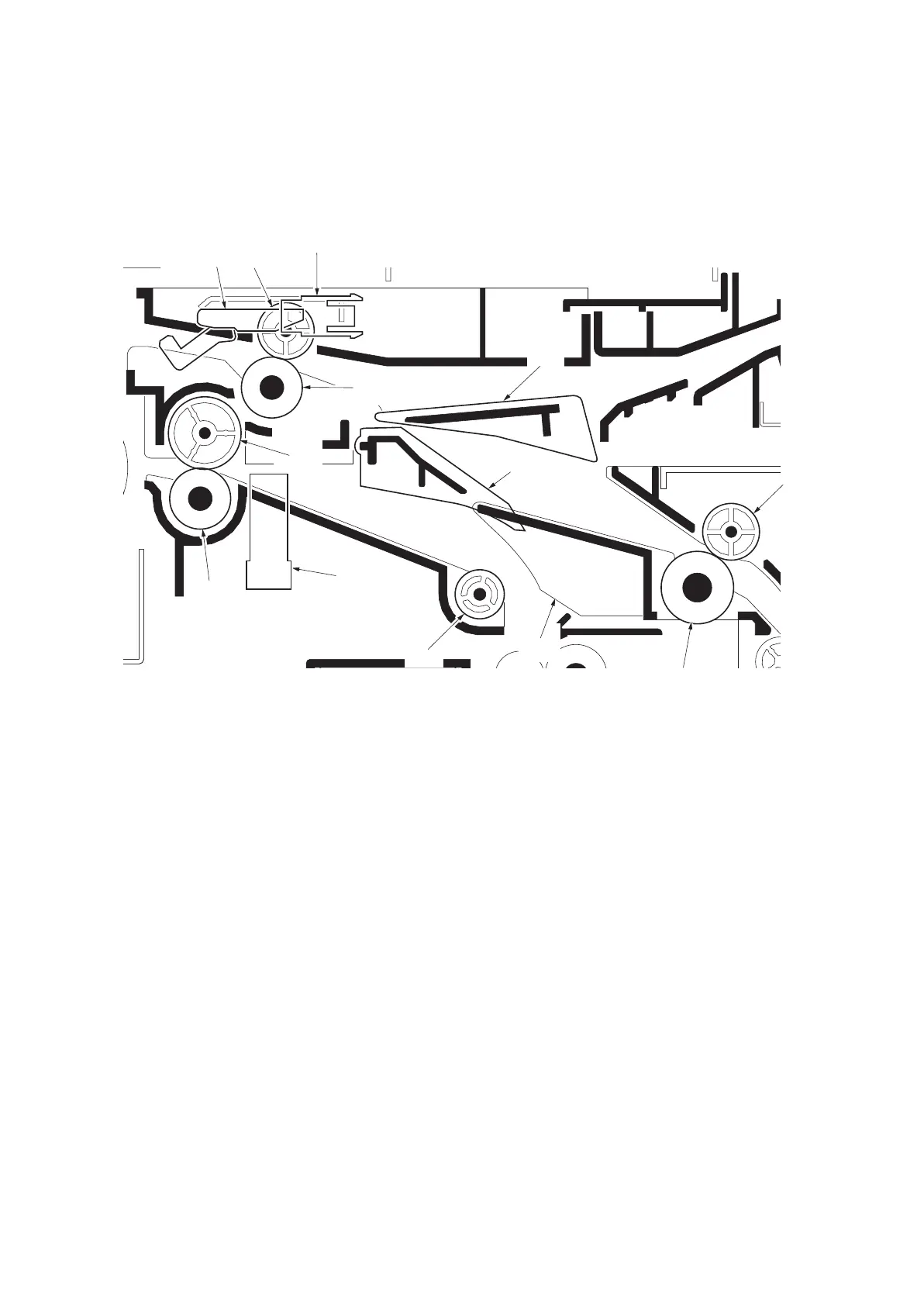

Figure 2-1-24 Feed shift/switchback section
7
6
8
1
2
3
4
5
9
10
11
13
12
1. Middle pulley
2. Eject roller
3. Eject pulley
4. Eject roller B
5. Eject pulley B
6. Upper duplex roller
7. Duplex pulley
8. Lower duplex roller
9. Lower change guide
10. Upper change guide
11. Eject sensor (ES)
12. Switchback sensor (SBS)
13. Actuator (switchback sensor)
