Kyocera TASKalfa 6501i - Detaching and Refitting the MP Tray Paper Feed Unit

2N8/2N7
1-5-29
(5) Detaching and refitting the MP tray paper feed unit
Procedure
1. Pull the paper conveying unit out.
2. Open the MP tray.
3. Remove four screws.

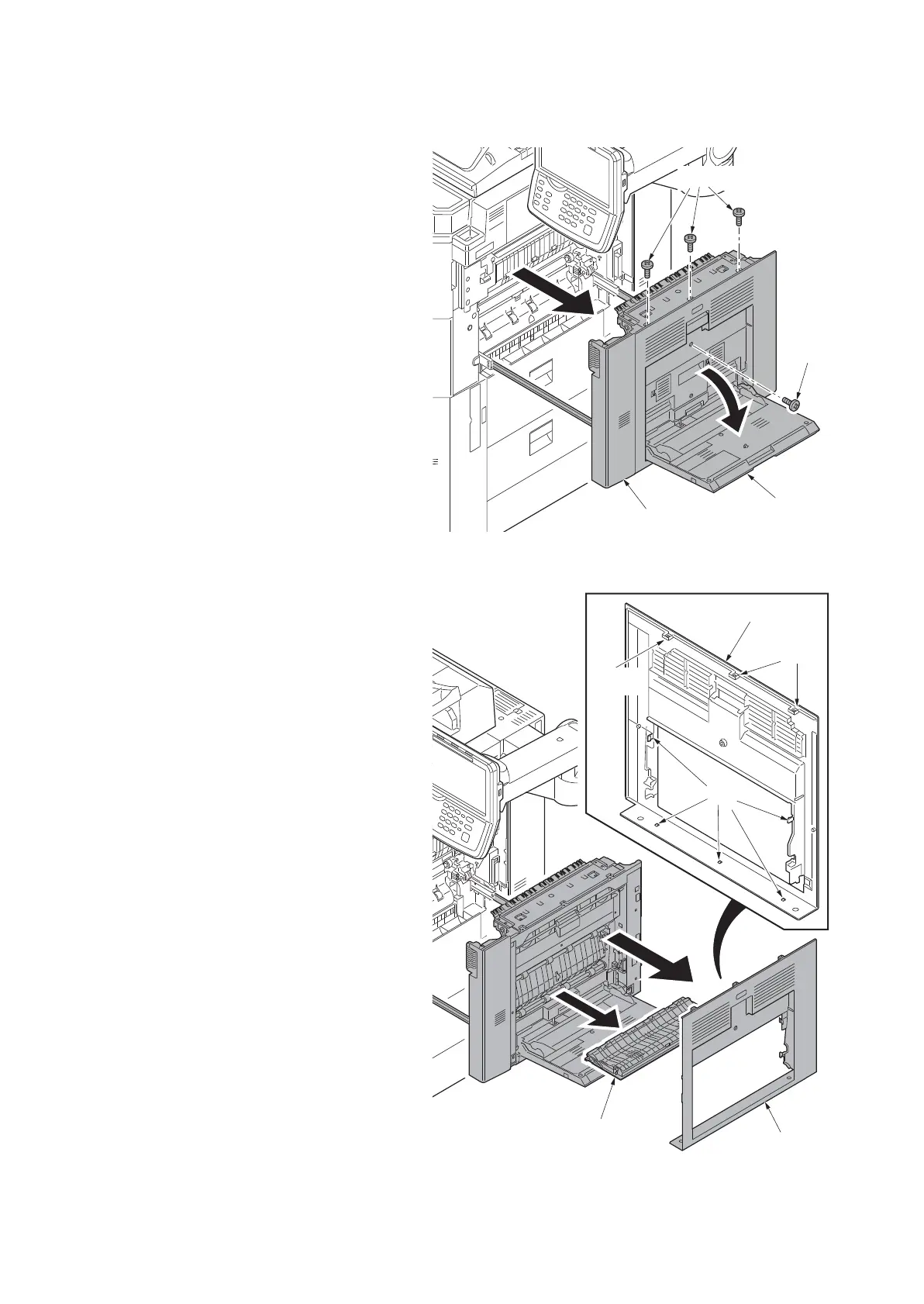

Figure 1-5-46
4. Unhook eight hooks and then remove
the right cover and DU cover assembly.
Figure 1-5-47
Screw
MP tray
Paper conveying
unit
Screws
Right cover
Hooks
Hooks
Hooks
Right cover
DU cover
assembly
