Kyocera TASKalfa 6501i - Adjusting the Angle of Trailing Edge

2N8/2N7
1-5-125
(5) Adjusting the angle of trailing edge
Perform the following adjustment if the trailing edge of the copy image is laterally skewed.
Procedure
1. Place an original on the DP and press
the start key to make a test copy.
2. If the gap of trailing edge exceeds the
reference value, perform the following
adjustment.
Reference value
For simplex copying: Within ±3.0 mm
For duplex copying: Within ±4.0 mm

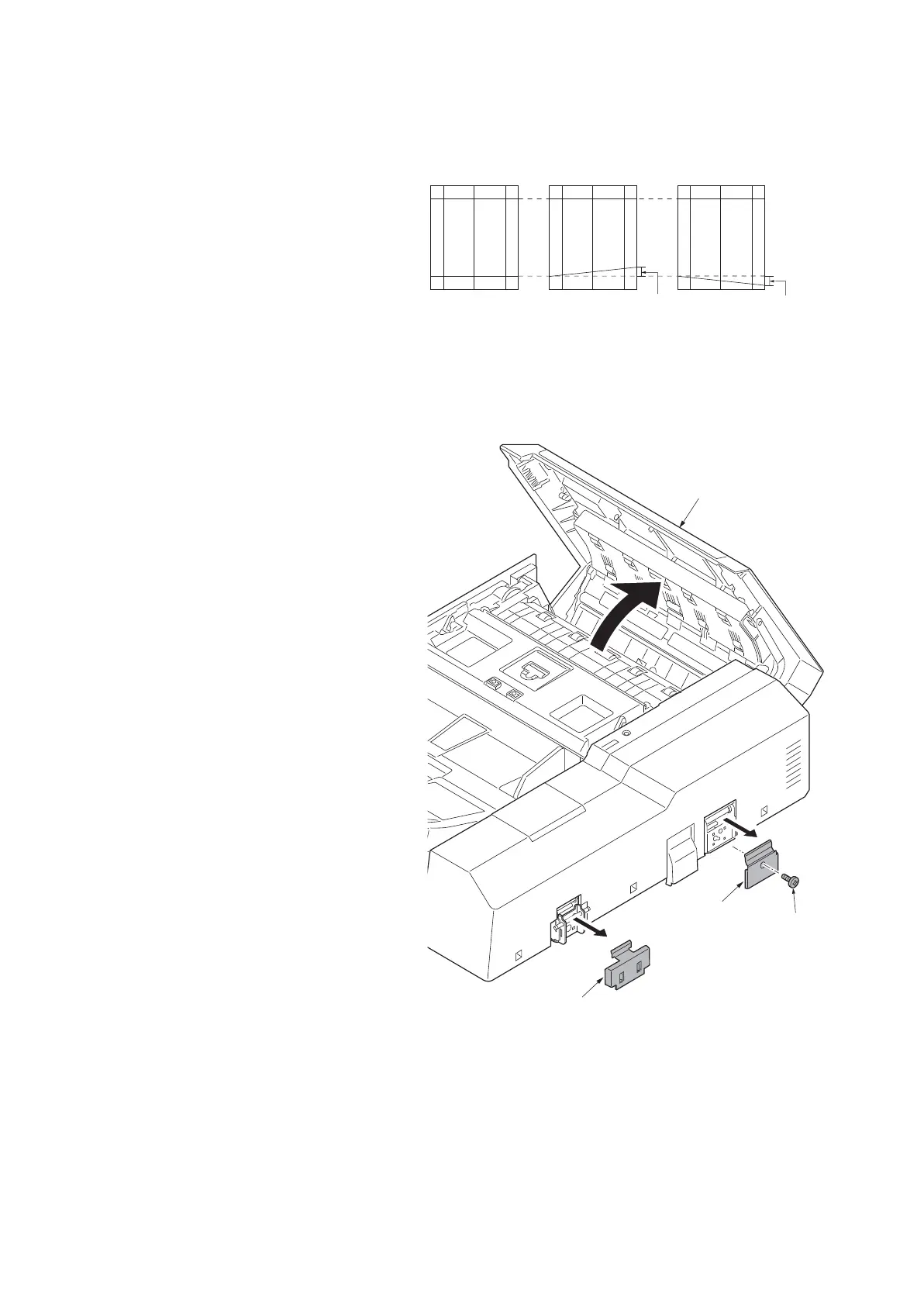

Figure 1-5-207
3. Open the DP top cover.
4. Remove the right hinge cover.
5. Remove the screw and then remove the
left hinge cover
Figure 1-5-208
Original
Copy
example 2
Copy
example 1
3mm/4mm 3mm/4mm
Screw
DP top cover
Right hinge cover
Left hinge cover
