2N8/2N7-6
1-5-41

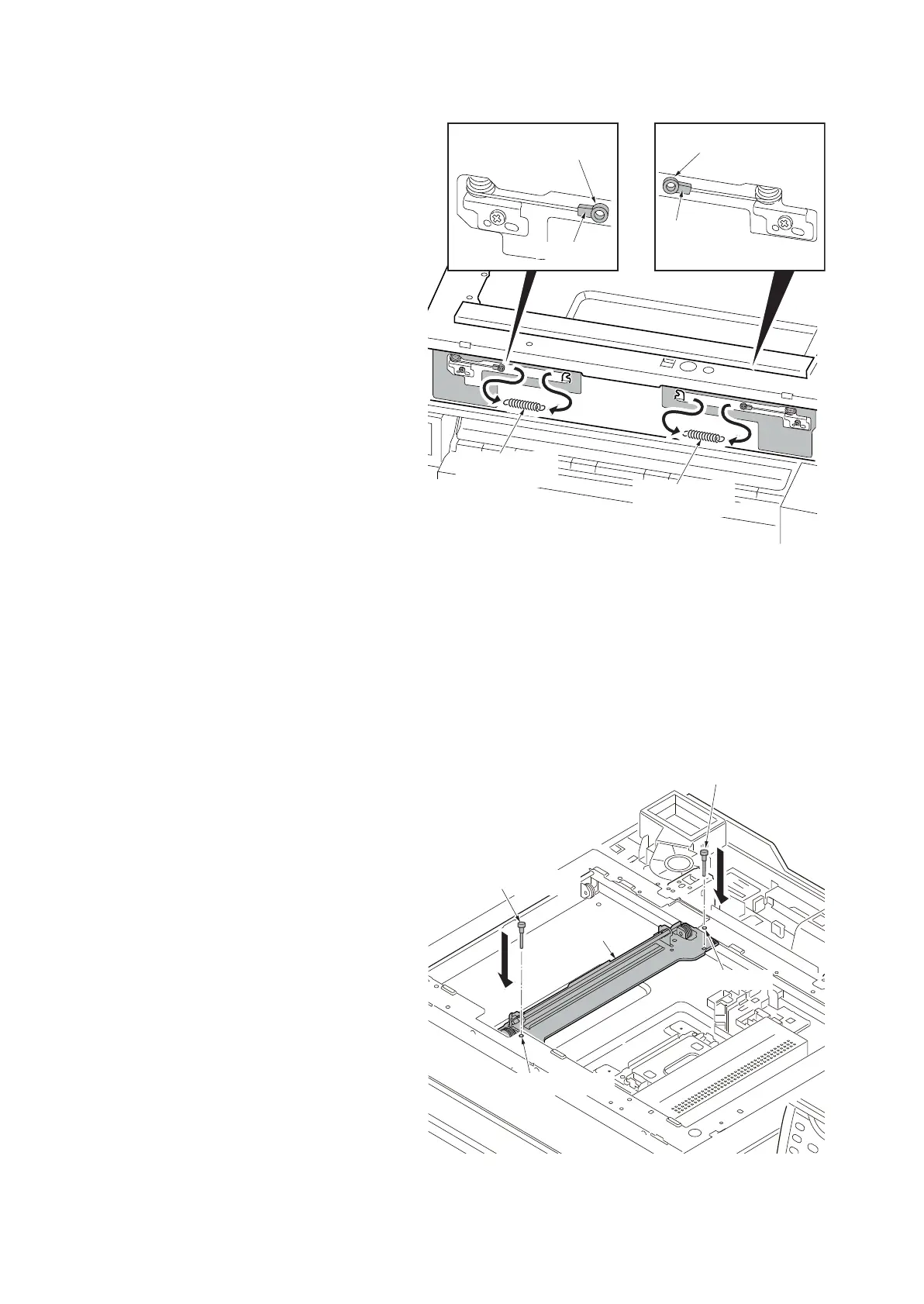

4. Remove the round terminals from the
scanner wire springs on scanner unit
left side.
5. Remove the scanner wire.
Figure 1-5-67
Fitting the scanner wires
6. Remove two screws each from scanner wire drum. ................................................................. (1)
7. Insert the locating ball on the scanner wire into the hole in the scanner wire drum.................. (2)
8. Wind the scanner wires three turns inward and five turns outward.
With the locating ball as the reference point,
wind the shorter end of each of the wires outward. .................................................................. (3)(4)
9. Secure the scanner wires using the scanner wire stoppers...................................................... (5)
10. Move the mirror 2 frame as shown in the
figure and insert two frame securing tools
into the positioning holes at the front and
rear of the machine center to fix the mirror 2
frame in position.
Figure 1-5-68
Round terminal
Round terminal
Red-marked
Scanner wire
spring
Scanner wire
spring
Red-marked
Frame securing tool
Frame securing tool
Mirror 2 frame
positioning hole
positioning hole
To Next Page
