Kyocera TASKalfa 6501i - Detaching and Refitting the Operation PWB

2N8/2N7
1-5-91
(8) Detaching and refitting the operation PWB
Procedure

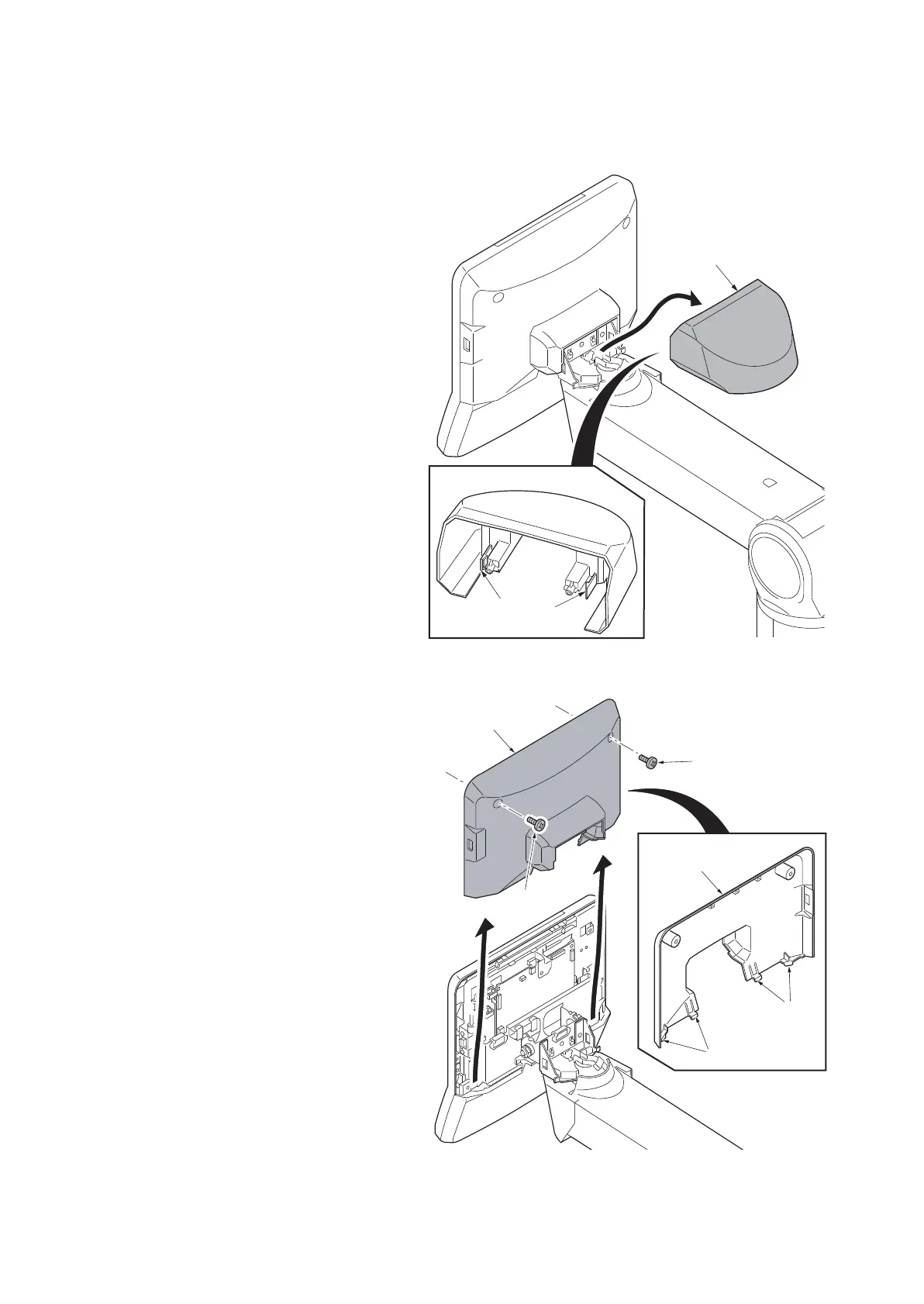

1. Unhook two hooks and then remove the
operation hinge cover A.
Figure 1-5-143
2. Remove two screws of the operation
rear lid.
3. Unhook four hooks and then remove
the operation rear lid.
Figure 1-5-144
Operation hinge cover A
Operation hinge cover A
Hooks
Screw
Screw
Hooks
Hooks
Operation rear lid
Operation rear lid
