Kyocera TASKalfa 6501i - Fan Motors

2N8/2N7
2-2-10
(4) Fan motors

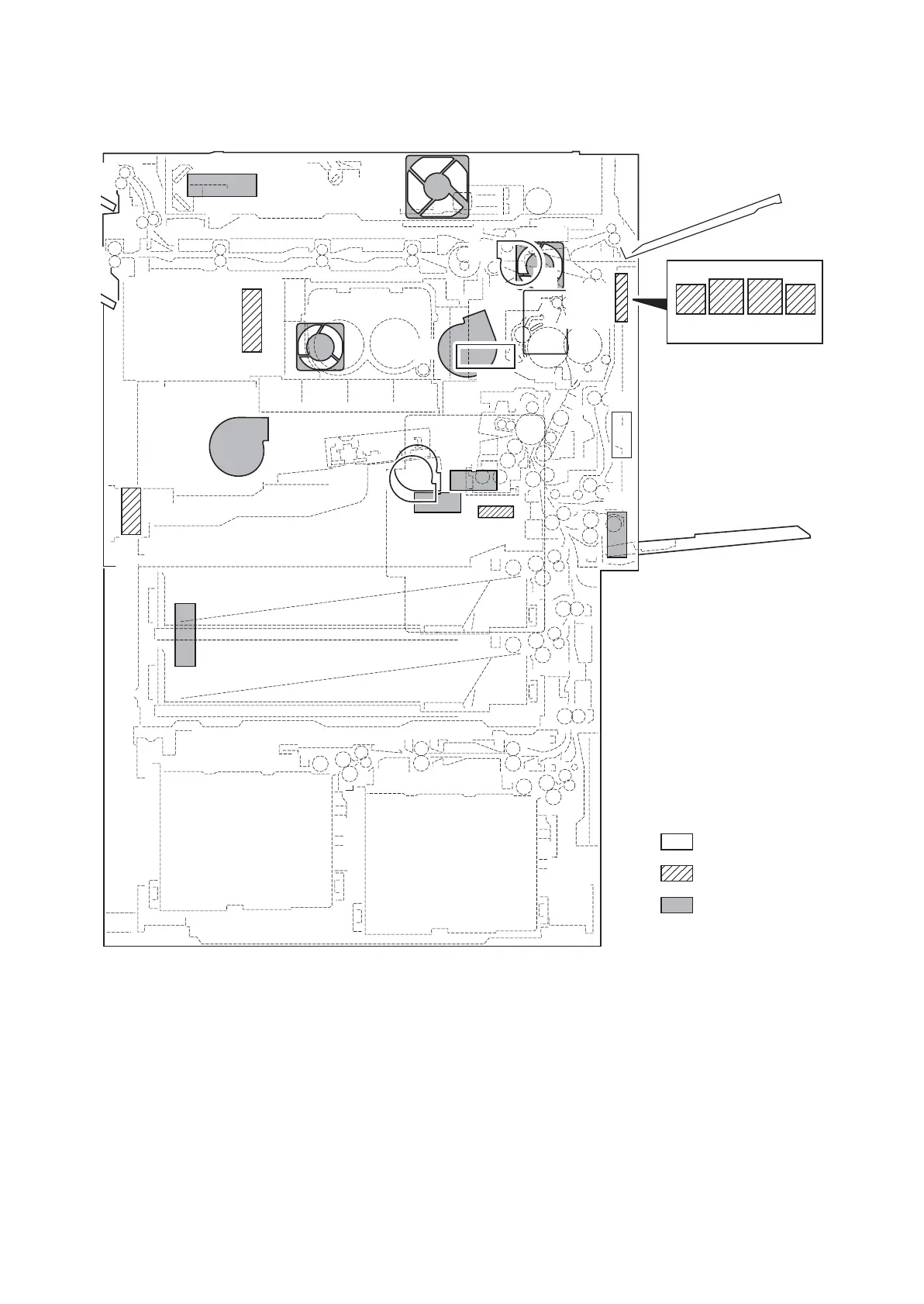

Figure 2-2-5 Motors
1. Toner fan motor 1 (TFM1) ..................... Retrieval of toner that was scattered.
2. Toner fan motor 2 (TFM2) ..................... Retrieval of toner that was scattered.
3. Developer fan motor 1 (DEVFM1) ........ Cools the developer section.
4. Developer fan motor 2 (DEVFM2) ........ Cools the developer section.
5. Exhaust fan motor 1 (EXFM1) .............. Cools the machine inside.
6. Exhaust fan motor 2 (EXFM2) .............. Cools the machine inside.
7. Exhaust fan motor 3 (EXFM3) .............. Cools the machine inside.
8. LSU fan motor (LSUFM) ....................... Cools the laser scanner unit section.
9. Fuser front fan motor (FUFFM)............. Cools the fuser section (front side).
17
20
21
1
7
5
6
4
3
8
19
17
18
13,14,
15,16
9
10
11
12
13 15 16 14
2
22
Machine inside
Machine front
Machine rear
