Kyocera TASKalfa 6501i - Error Symptom at an Erroneous Insertion of the Engine PWB FFC

2N8/2N7
1-5-86
(5) Error symptom at an erroneous insertion of the engine PWB FFC
If an FFC is inserted improperly, the following symptom could be observed:

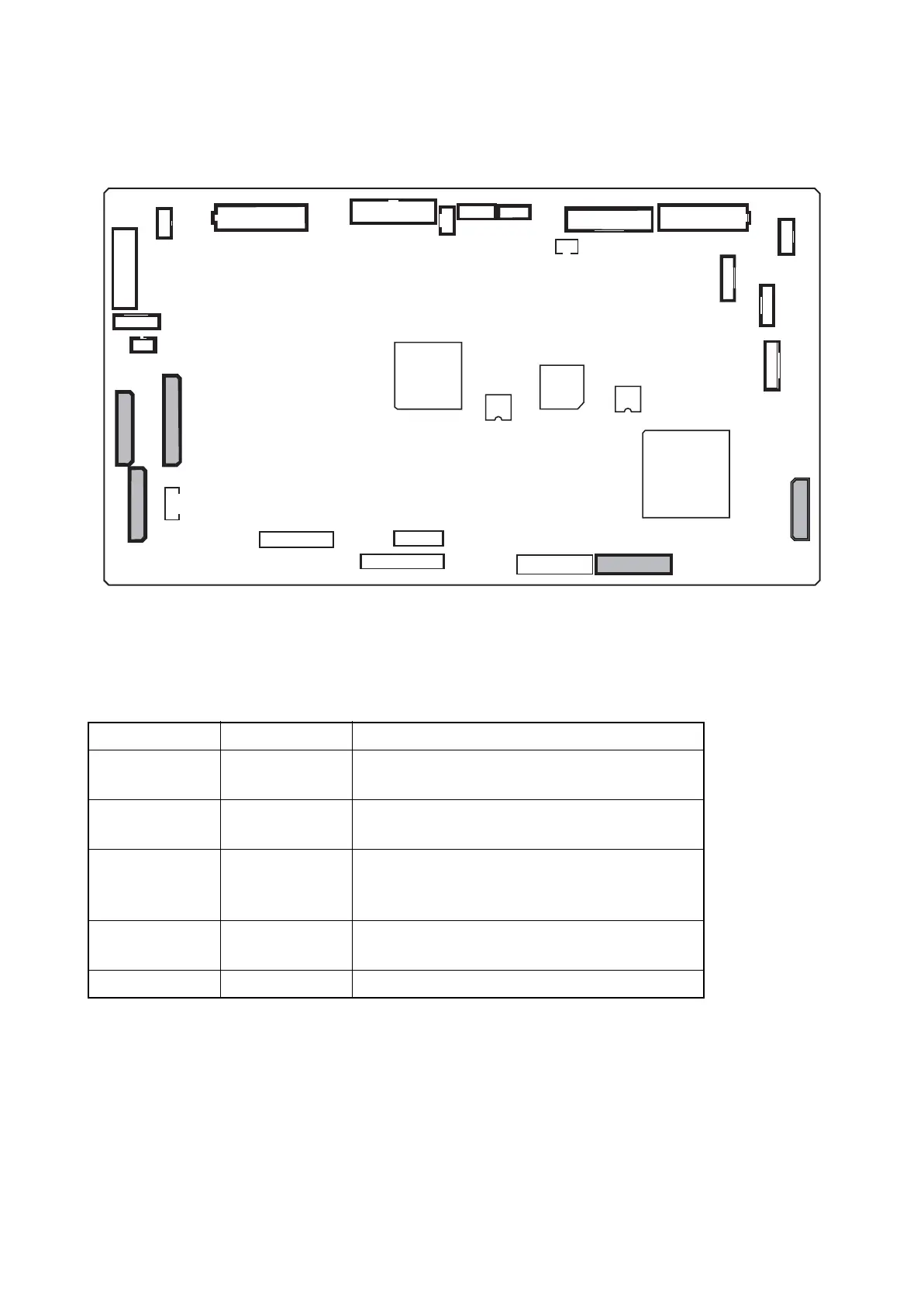

Figure 1-5-134
Engine PWB Connect PWB Occurrence
YC6 FEED1 [The cover is open](right cover1)
[Machine failure] (C2300)
YC5 FEED1 [Machine failure] (C2211)
[Paper jam] (JAM4101_15)
YC4 FEED2 [The cover is open] (right cover1)
[Machine failure] (C2500)
[Paper jam] (JAM0000_02,03,10,15)
YC11 LSU [System error] (C4101)
[Machine failure] (C4101)
YC50 Main [System error] (F040)
YC26
YC13
YC2
YC22
YC20
U100
YC46
YC8
YC9
YC7
YC19
YC18
YC16
YC15
YC6
YC1
YC27
YC4
YC5
YC11
YC17
Engine PWB
