Kyocera TASKalfa 6501i - Right Cassette Paper Feed Section Block Diagram

2N8/2N7-1
2-1-5

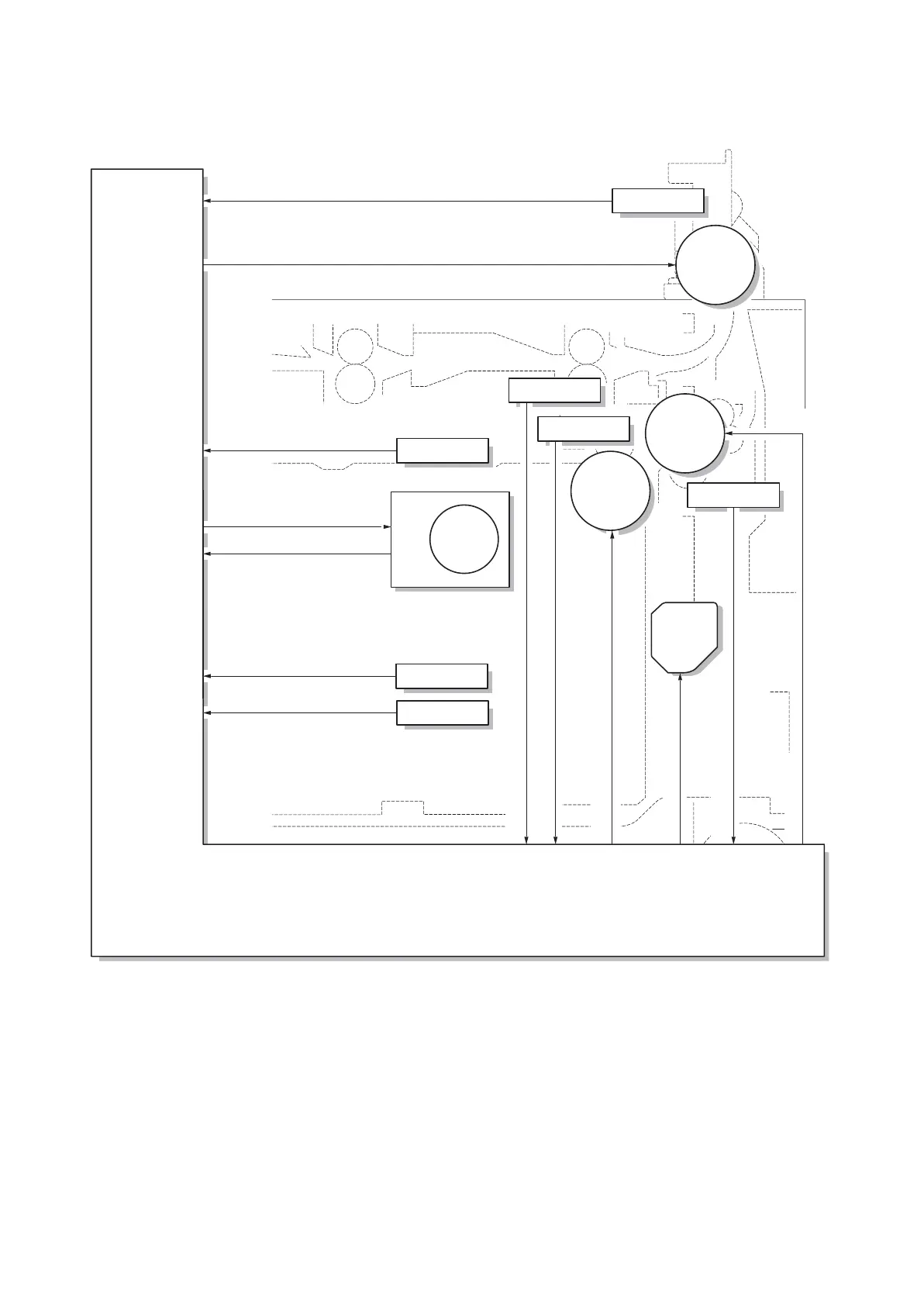

Figure 2-1-5 Right cassette paper feed section block diagram
PFPFM
PFPCCL1
PFPFCL1
PFPCCL2
PFPCS1
PFPS1
PFLS1
PFFS1
PFSDSW1
PFPGS1(U)
PFPGS1(L)
YC7-3,4
YC5-13 YC5-16 YC15-3 YC15-1 YC5-18
OUT1B, OUT1A EMPTY_R_SW LIMY_R_SW PF_R_CL FD_R_SW HFDCL1
YC5-7
YC3-3
YC3-6
YC16-1,2,3,4
YC3-15
YC5-3
VFDSW
PAP_R_SW2
PAP_R_SW1
CW/CCW,CLK,REM
RDY
SIZE_R_SW
VFDCL
PFMPWB
PFLM1
