2N8/2N7
1-5-105
(3) Detaching and refitting the fuser drive unit and feed drive unit
Procedure
Detaching the fuser drive unit
1. Remove the rear upper cover and the
rear lower cover (see page 1-5-3).
2. Remove five wire holders of feed PWB
1 assembly.
3. Release two wire saddles.

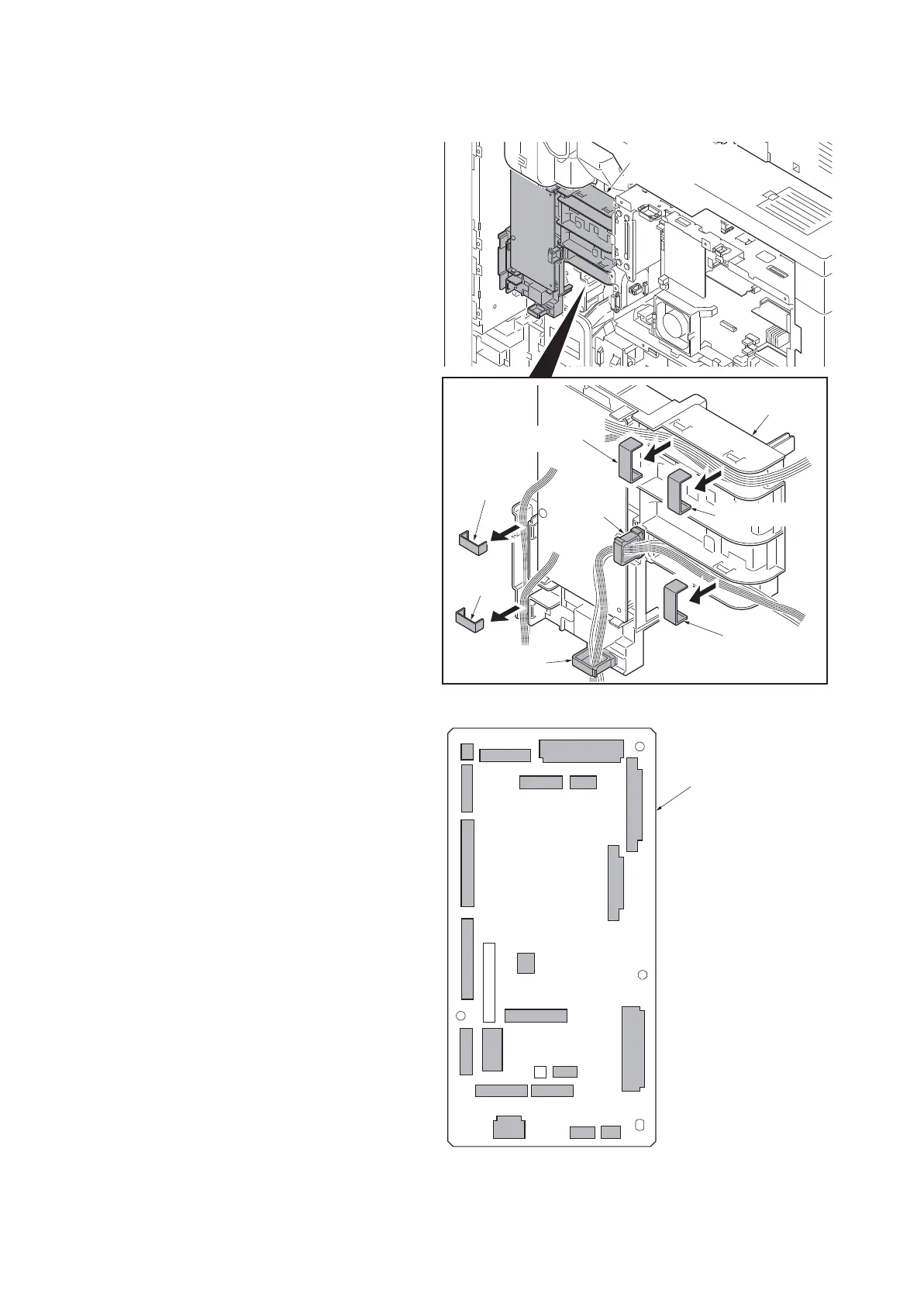

Figure 1-5-170
4. Remove the following twenty one con-
nectors from the feed PWB 1.
YC18, YC19
YC20, YC27
YC26, YC3
YC17, YC14
YC16
YC13, YC12
YC23, YC25
YC15, YC11
YC5, YC4
YC1 (Connector type FFC)
YC2 (Connector type FFC)
YC8,YC9
*: Before removing the connector type
FFCs of YC1 and YC2, unlock the lock
by pressing the lock lever in its center.
Figure 1-5-171
Feed PWB 1
assembly
Feed PWB 1
assembly
Wire holder
Wire holder
Wire holder
Wire
holder
Wire
holder
Wire
saddle
Wire
saddle
;%
;%
;% ;%
;%
;%
;%;%
;%
;%
;%
;% ;%
;%
;%
;%
;%
;%
;% ;%
;%
Feed PWB 1
To Next Page
