5. Remove the FFC from the Connector
type FFC (YC4) on the engine PWB.
Remove the FFC from the FFC connec-
tor with a lock (YC1) on the feed PWB
2.
*: When removing the FFC from the FFC
connector with a lock, remove the FFC
after released by lifting down the lock
lever (see page 1-5-76).

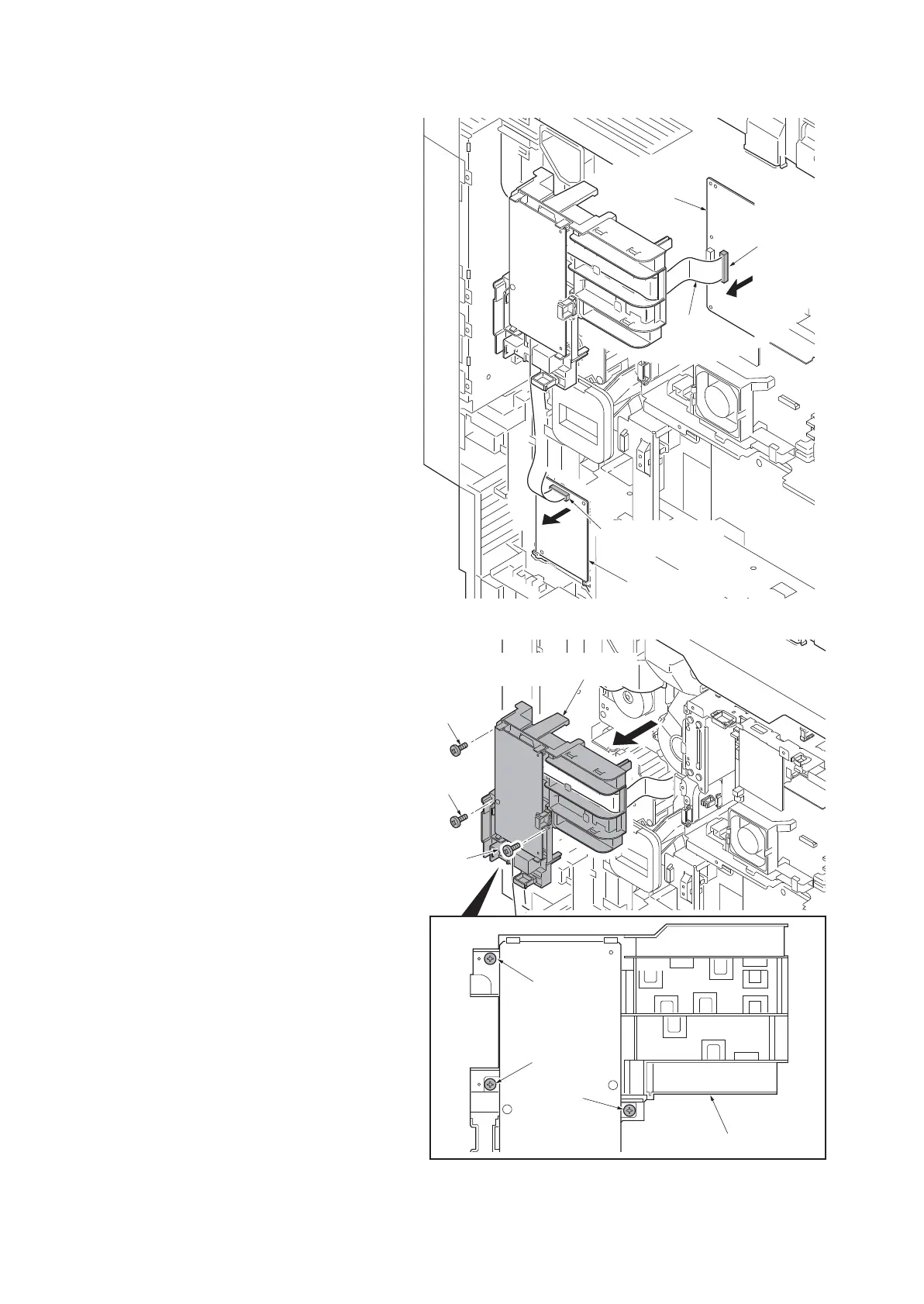

Figure 1-5-172
6. Remove three screws.
7. Remove the feed PWB 1 assembly.
Figure 1-5-173
Engine
PWB
FFC
Feed PWB 2
Connector type
FFC (YC4)
Connector type
FFC (YC1)
Feed PWB 1 assembly
Screw
Screw
Screw
Screw
Screw
Screw
Feed PWB 1 assembly
