Kyocera TASKalfa 6501i - Detaching and Refitting Eject Unit

2N8/2N7-2
1-5-72
(2) Detaching and refitting eject unit
Procedure
1. Remove the job separator (see page 1-
5-71).
2. Remove the screw and then remove the
arm hinge cover A and B.

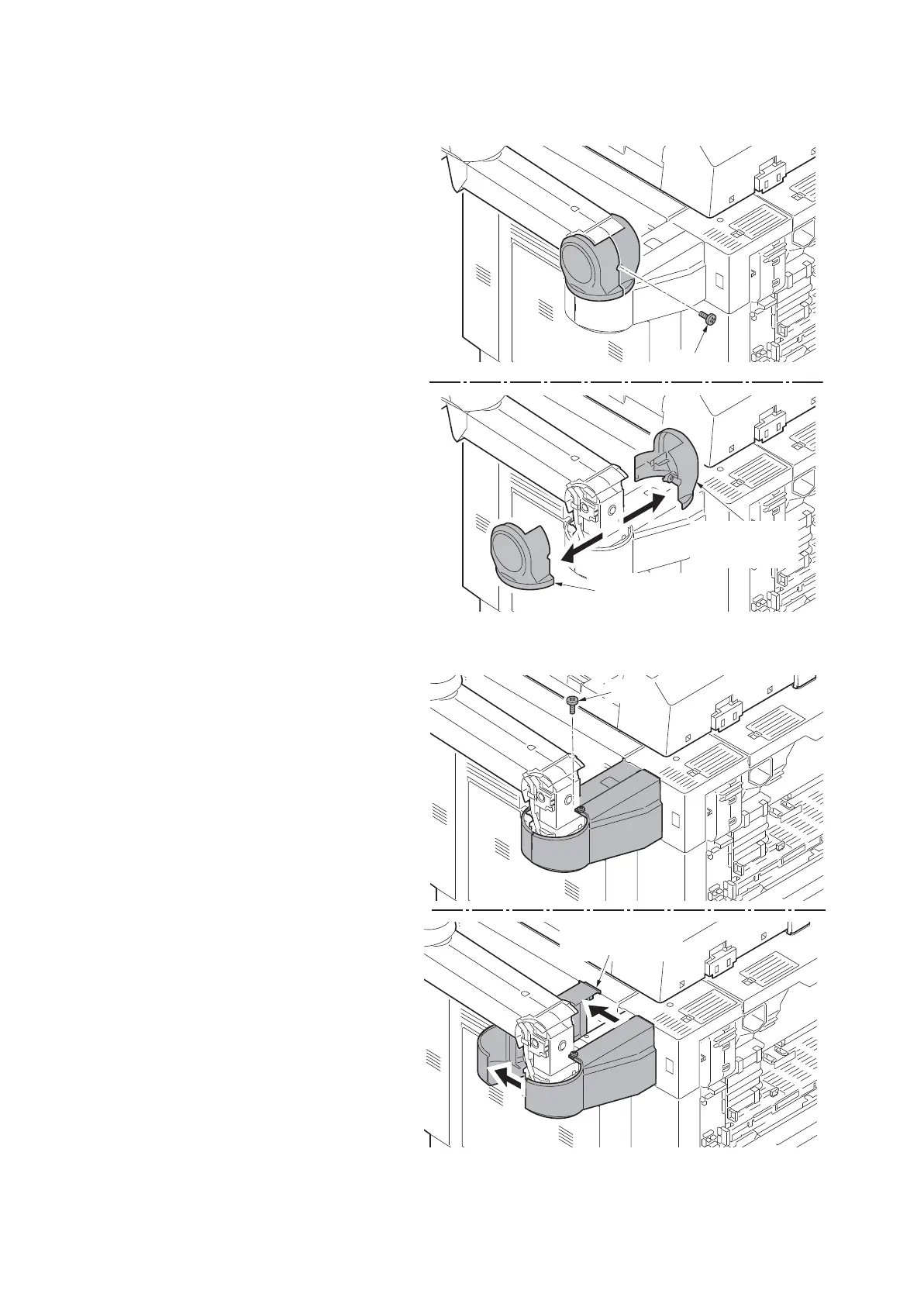

Figure 1-5-117
3. Remove the screw and then remove the
operation mount cover B.
Figure 1-5-118
Screw
Arm hinge
cover B
Arm hinge
cover A
Screw
Operation mount
cover B
