2-1-3 Developer section
The developer unit consists of the sleeve roller that forms the magnetic brush, the magnet roller, the devel-
oper blade and the developer screws that agitate the toner. Also, the toner sensor (TS) checks whether or not
toner remains in the developer unit.

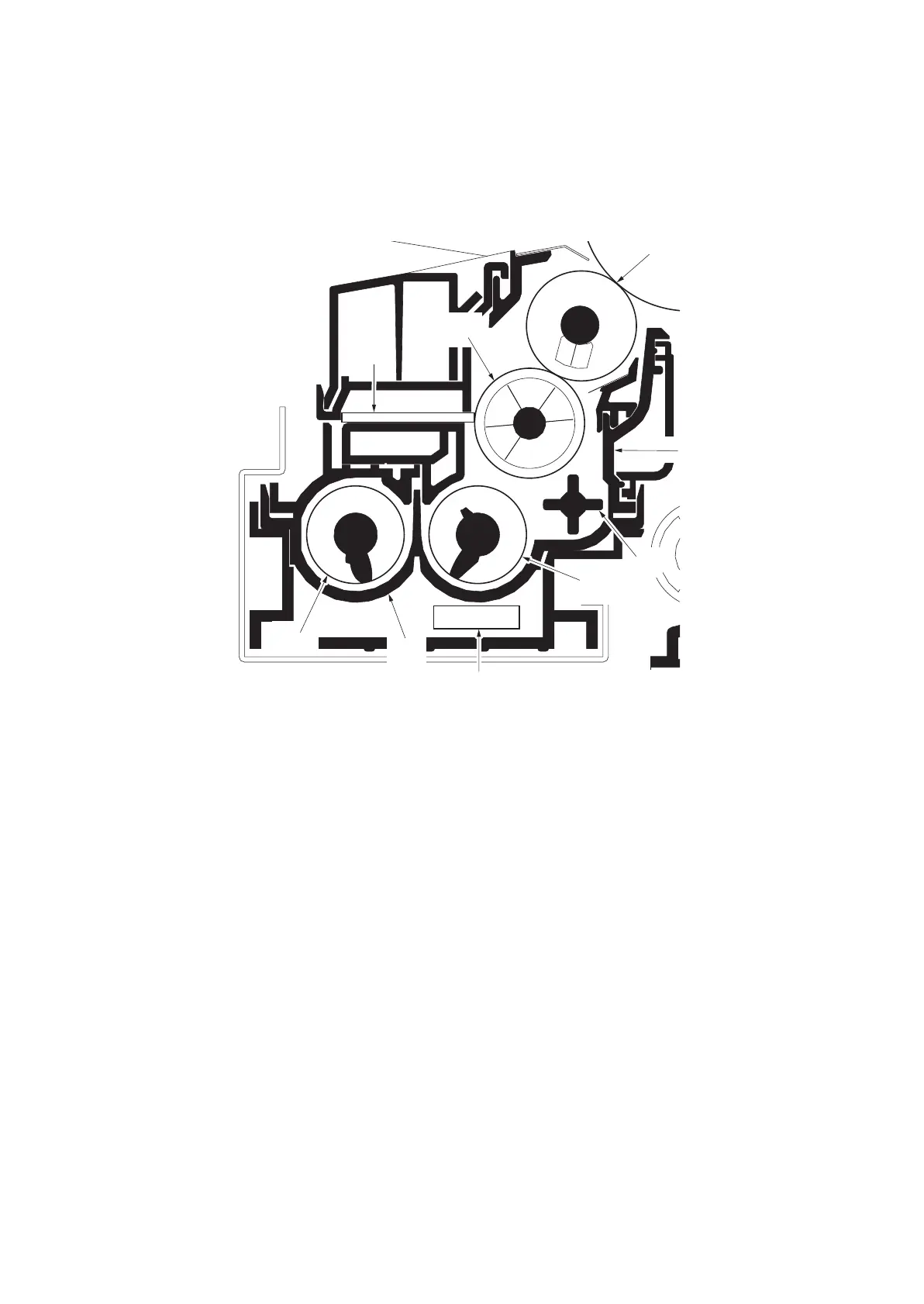

Figure 2-1-13 Developer section
6
5
7
1
2
9
3
4
8
1. Sleeve roller
2. Magnet roller
3. Developer screw A
4. Developer screw B
5. Developer paddle
6. Developer blade
7. Developer case
8. Developer cover
9. Toner sensor (TS)
