Kyocera TASKalfa 6501i - Switches and Sensors

2N8/2N7
2-2-5
(2) Switches and sensors

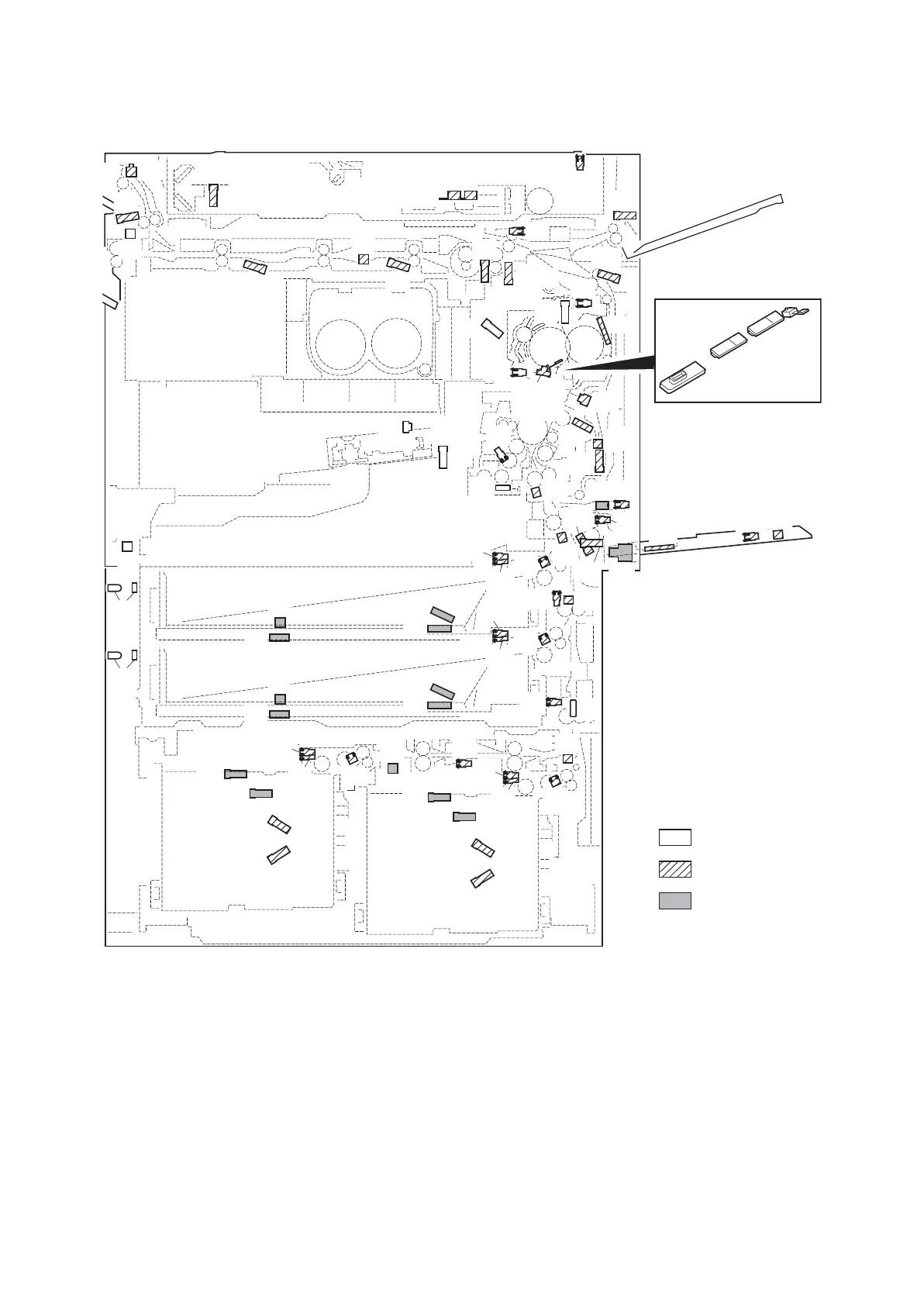

Figure 2-2-3 Switches and sensors
1. Main power switch (MSW) .................... Turns ON/OFF the AC power source.
2. Front cover switch (FRCSW) ................ Detects the opening and closing of the front cover.
3. Paper sensor 1 (PS1) ........................... Detects the presence of paper (cassette 1).
4. Paper sensor 2 (PS2) ........................... Detects the presence of paper (cassette 2).
5. Lift sensor 1 (LS1)................................. Detects activation of upper limit of the bottom plate (cassette 1).
6. Lift sensor 2 (LS2)................................. Detects activation of upper limit of the bottom plate (cassette 2).
7. Paper gauge sensor 1 (U) (PGS1(U))... Detects the paper gauge (cassette 1).
8. Paper gauge sensor 1 (L) (PGS1(L)).... Detects the paper gauge (cassette 1).
9. Paper gauge sensor 2 (U) (PGS2(U))... Detects the paper gauge (cassette 2).
17
29
27
28
46
47
40
26
25
17
15
16
55
56
72
73
61
62
63
64
65
66
67
68
69
70
71
7
8
13
33
30
31
41
42
43
45
44
32
35
50
52
11
14
12
9
10
48
19
54
5
3
22
21
23
18
20
24
1
53
49
34
74
75
78
80
79
2
76
77
37,38,
39,40
36
37
38
39
59
57
60
58
6
4
51
Machine inside
Machine front
Machine rear
