Kyocera TASKalfa 6501i - Detaching and Refitting the Transfer Belt Unit

2N8/2N7
1-5-65
(2) Detaching and refitting the transfer belt unit
Procedure
1. Pull the paper conveying unit out.
2. Remove three screws and then remove
the conveying rear middle cover.
3. Remove the connector.

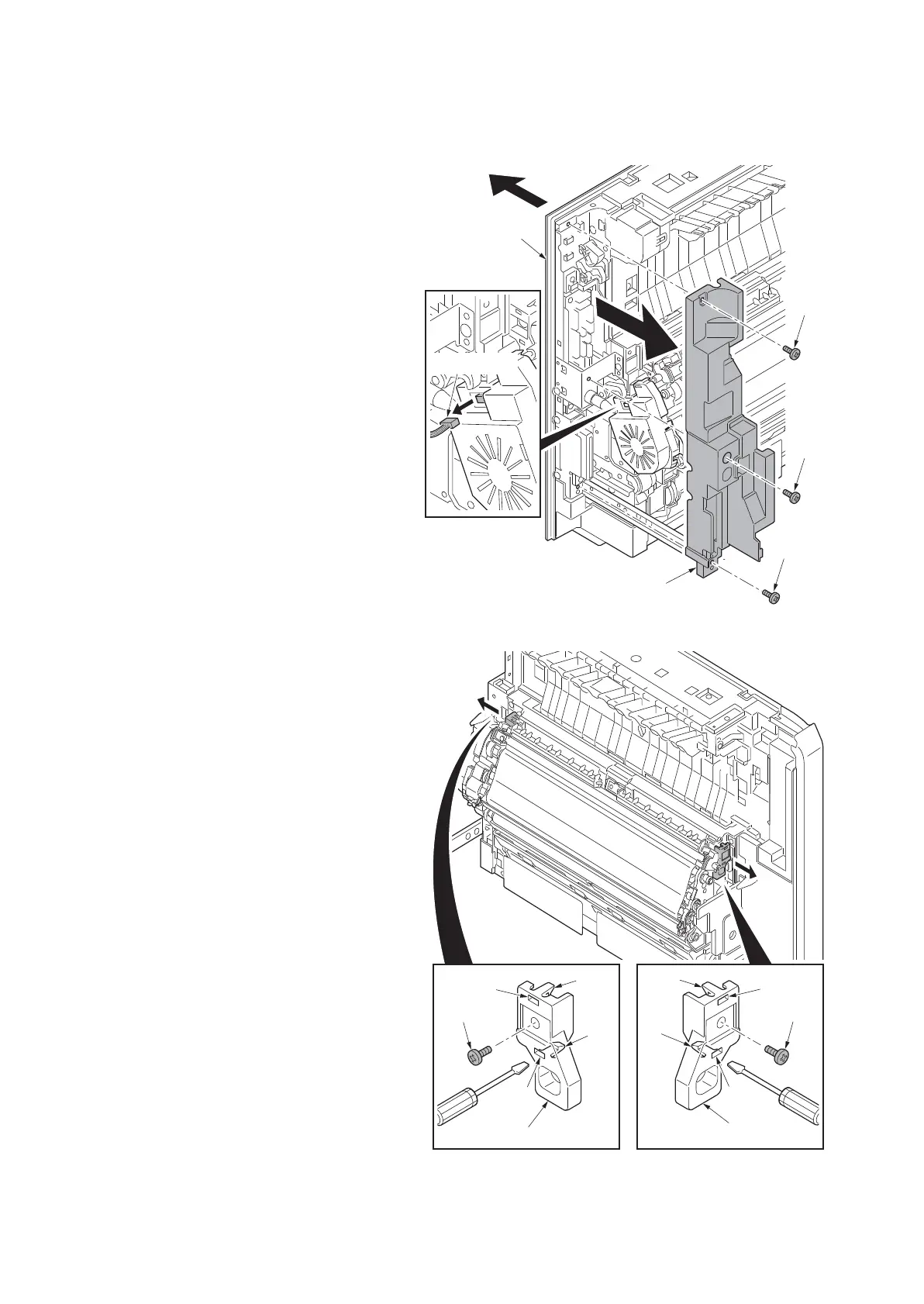

Figure 1-5-109
4. Unhook the two hooks by the tip of a
screwdriver though the hole and then
remove the front and rear transfer hold-
ers.
Figure 1-5-110
Paper
conveying unit
Screw
Screw
Screw
Conveying rear
middle cover
Connector
Screw
Screw
Hole
Hole
Hole
Hole
Rear transfer holder
Front transfer holder
Hook
Hook
Hook
Hook
