Kyocera TASKalfa 6501i - Detaching and Refitting the Forwarding Pulley, Paper Feed Pulley, Separation Pulley

2N8/2N7-1
1-5-21
(2) Detaching and refitting the forwarding pulley, paper feed pulley, separation
pulley.
Procedure

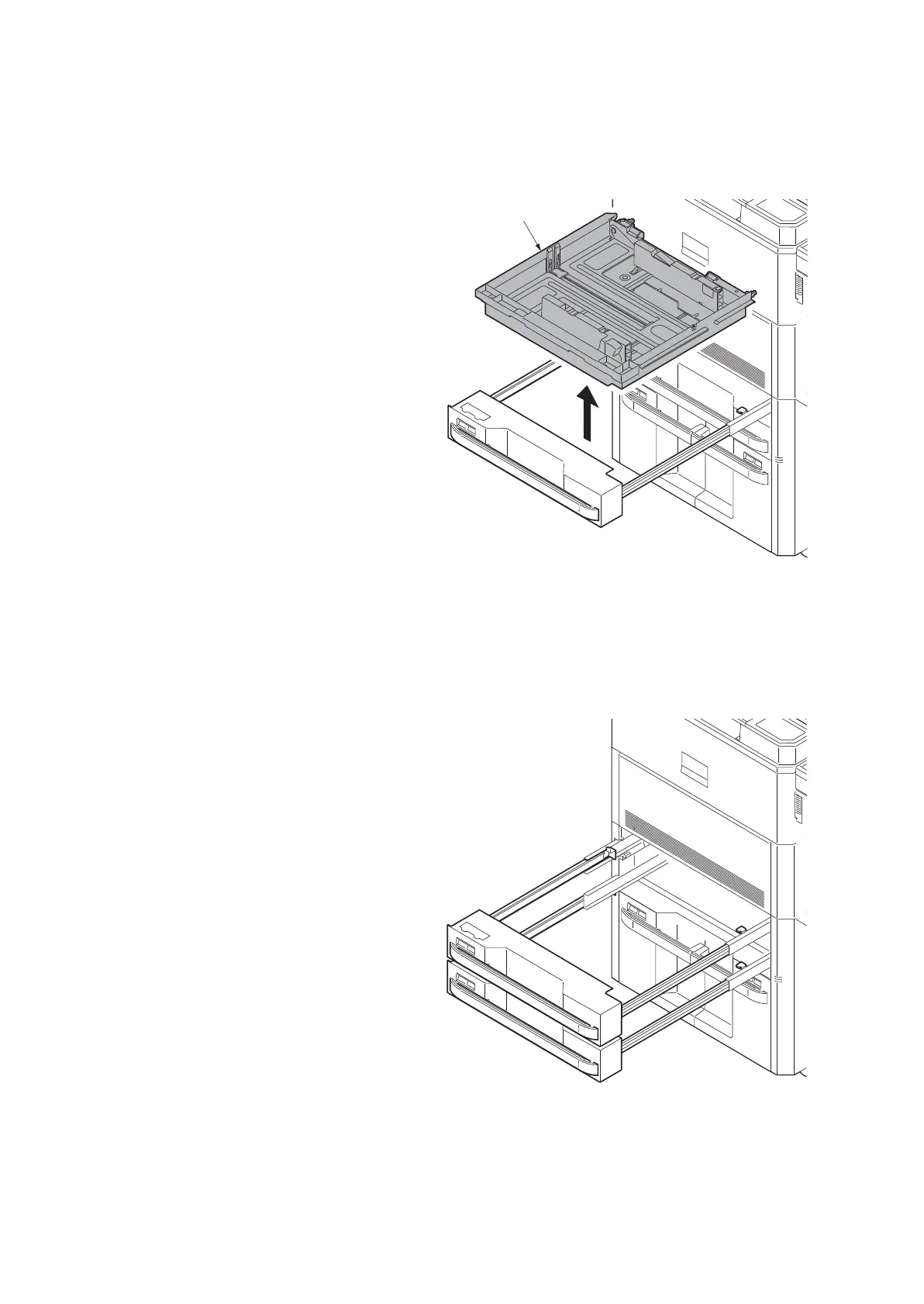

1. Pull the cassette 1 completely.
2. Pull up the cassette.
Figure 1-5-33
3. Remove the cassette 2 in the same
manner as above.
Figure 1-5-34
Cassette
