Kyocera TASKalfa 6501i - Detaching and Refitting the Scanner Wires

2N8/2N7
1-5-40
(2) Detaching and refitting the scanner wires
NOTE
When fitting the wires, be sure to use those specified below.
Machine front: (P/N: 302H717381), gray
Machine rear: (P/N: 302H717391), black
Fitting requires the following tools
Two frame securing tools (P/N 302FZ17100)
Two scanner wire stoppers (P/N 3596811)
Procedure
1. Remove the exposure lamp
(see page 1-5-37).
2. Remove each screw and then remove
front and rear wire holder plates from
mirror 1 frame.
3. Remove the mirror 1 frame.

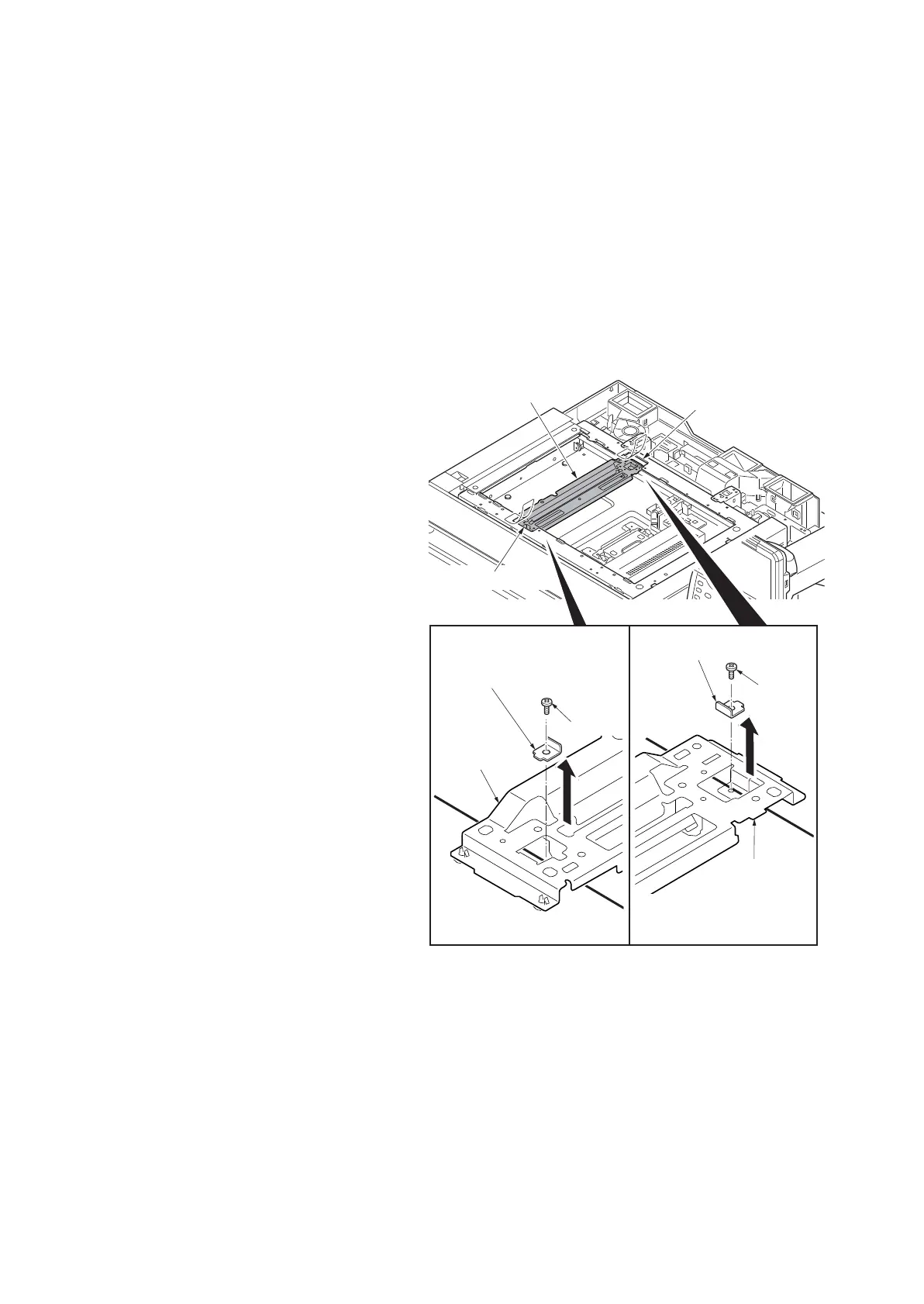

Figure 1-5-66
Cutting lack part
Cutting lack part
Mirror 1 frame
Mirror 1 frame
Mirror 1 frame
Screw
Screw
Rear wire holder plate
Front wire holder plate
