Kyocera TASKalfa 6501i - Motors (Document Processor)

2N8/2N7
2-2-16
(8) Motors (document processor)

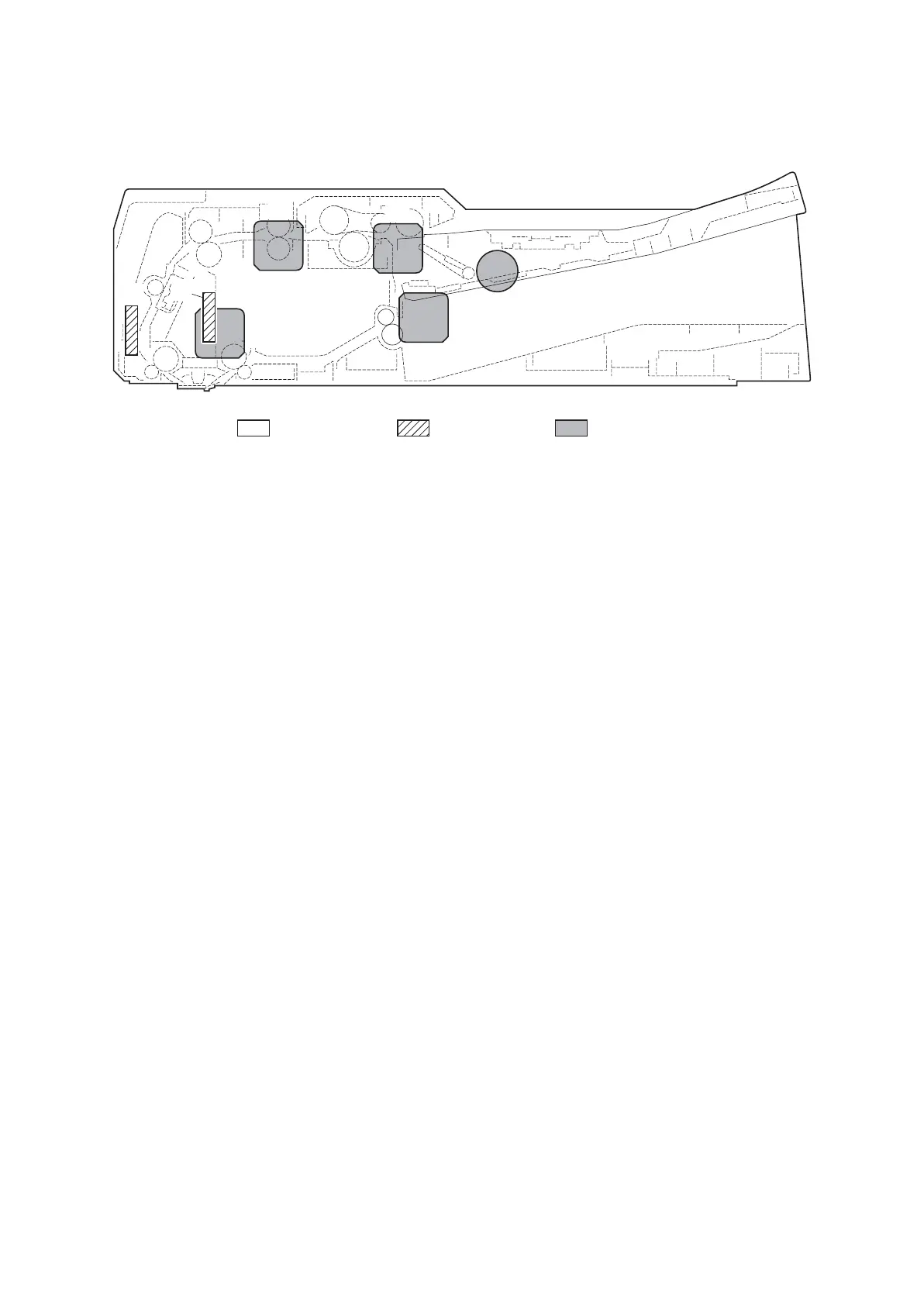

Figure 2-2-9 Motors (document processor)
1. DP original feed motor (DPOFM).......... Drives the original feeding section.
2. DP ragistration motor (DPRM) .............. Drives the DP registration roller.
3. DP conveying motor (DPOCM)............. Drives the original conveying section.
4. DP eject motor (DPEM) ........................ Drives the DP eject roller.
5. DP lift motor (DPLM)............................. Operates the original lift guide.
6. DP fan motor1 (DPFM1) ....................... Cools the drive section.
7. DP fan motor2 (DPFM2) ....................... Cools the CIS.
3
6
4
2
1
7
5
Machine insideMachine front Machine rear
