Kyocera TASKalfa 6501i - Left Cassette Section

2N8/2N7
2-1-4
Left cassette section

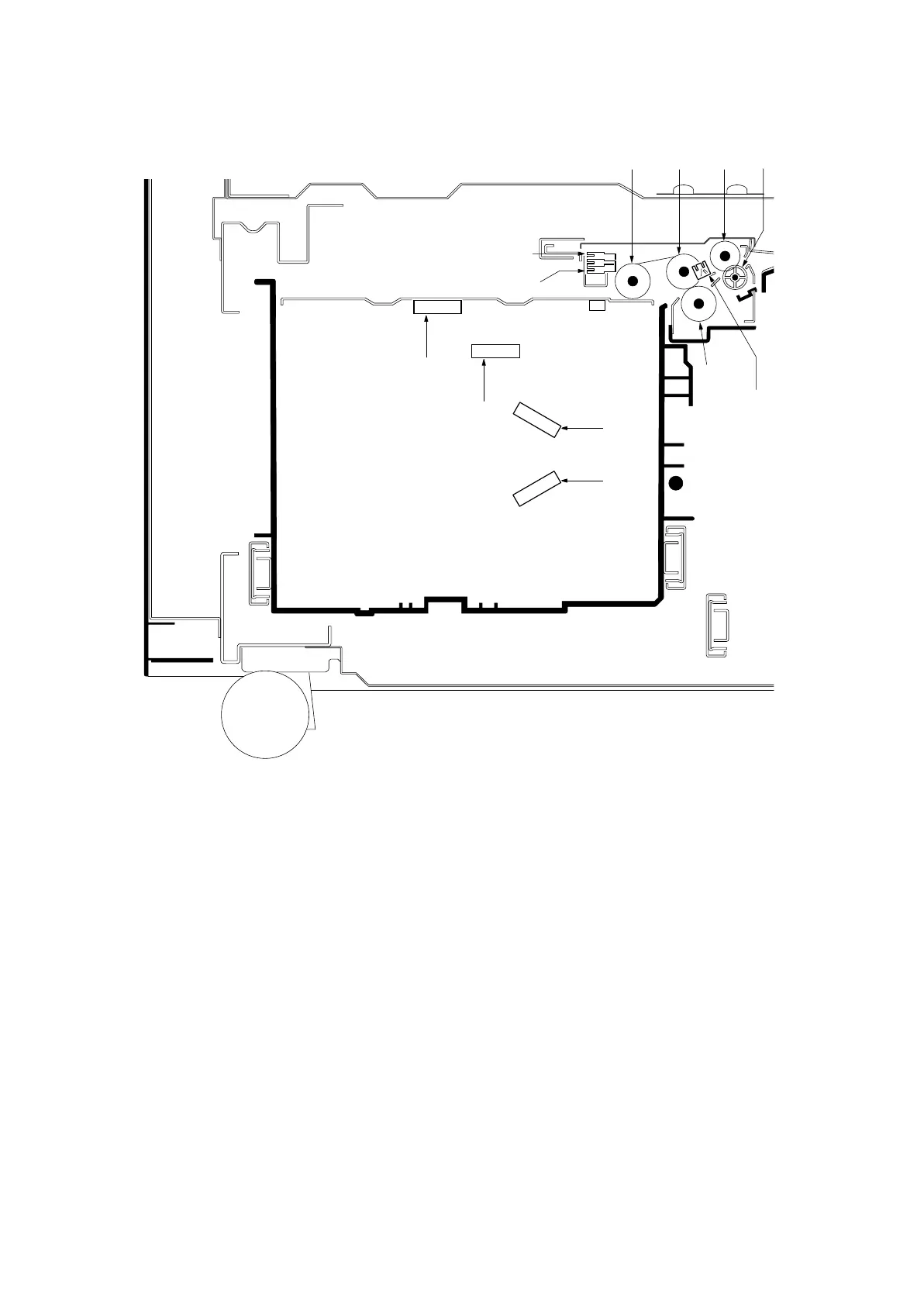

Figure 2-1-4 Left cassette section
1 2 4
3
6
7
8
9
5
12
10
11
1. PF forwarding pulley 2
2. PF paper feed pulley 2
3. PF separation pulley 2
4. PF feed roller 2
5. PF feed pulley
6. PF size detection switch 2 (PFSDSW2)
7. PF cassette detection switch 2 (PFCDSW2)
8. PF paper gauge sensor 2 upper (PFPGS2(U))
9. PF paper gauge sensor 2 lower (PFPGS2(L))
10. PF paper sensor 2 (PFPS2)
11. PF lift sensor 2 (PFLS2)
12. PF feed sensor 2 (PFFS2)
