(4) Detaching and refitting the PF drive unit
Procedure
1. Remove the PF rear cover (see page 1-
5-100).
2. Remove the connector of AC wire from
the paper feeder.

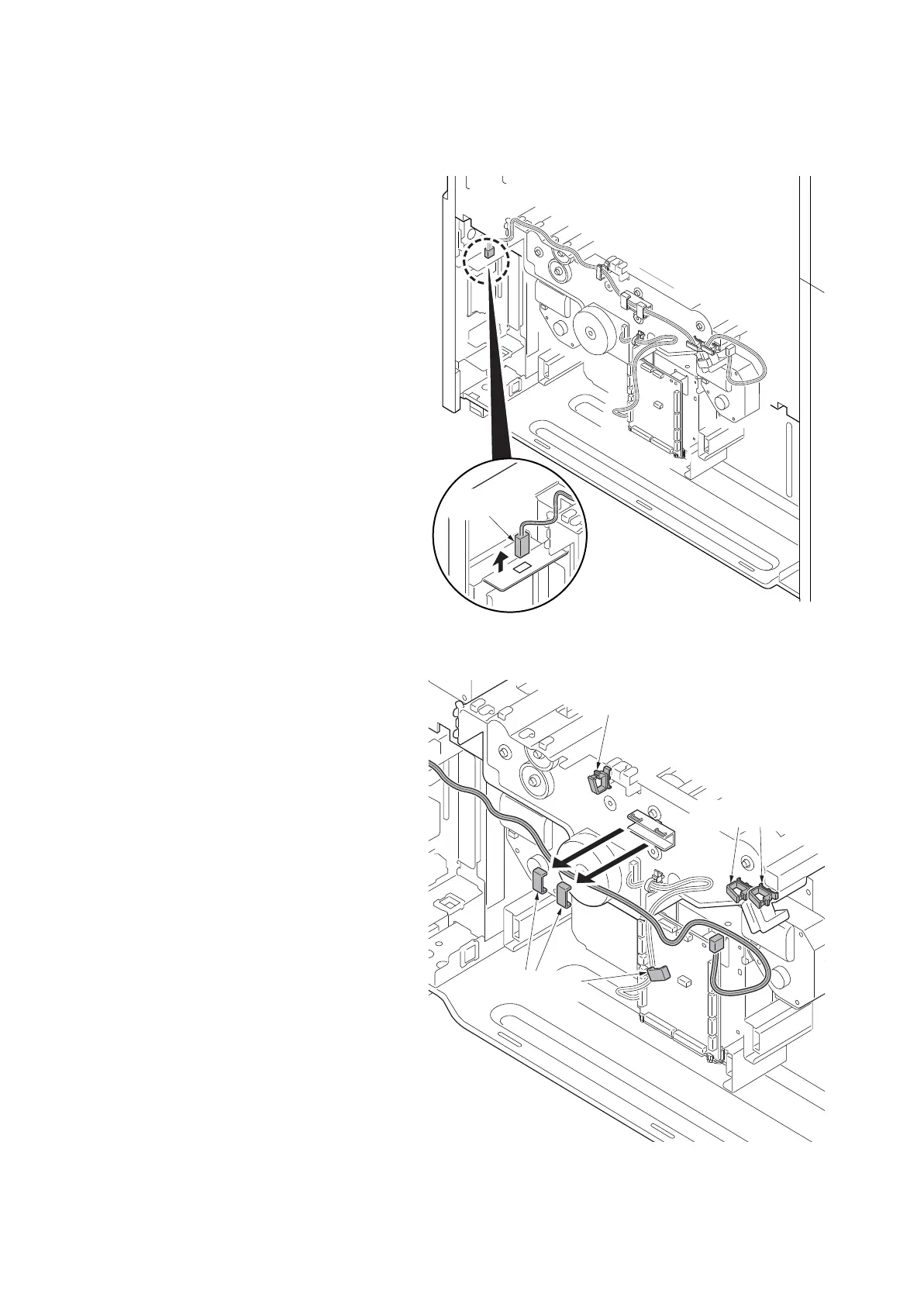

Figure 1-5-181
3. Remove three wire holders.
4. Release three wire saddles and then
remove the wire.
Figure 1-5-182
Connector
Wire saddles
Wire holders
Wire saddle
