Kyocera TASKalfa 6501i - Page 724

2N8/2N7
1-5-112

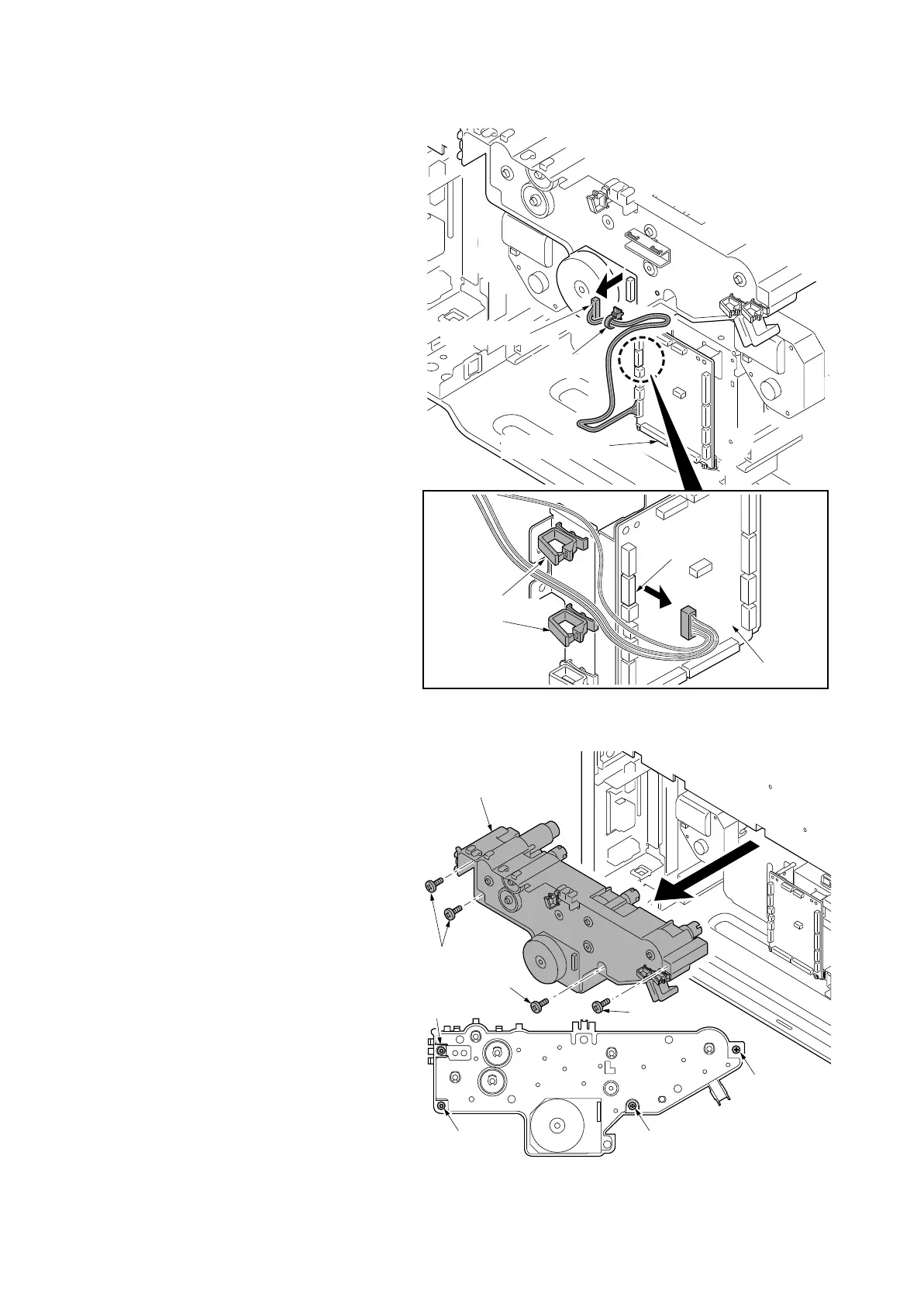

5. Remove the connector and the band of
PF paper feed motor.
6. Remove the connector (YC15) from the
PF main PWB and then release the
wire from two wire saddles.
Figure 1-5-183
7. Remove four screws and then remove
the PF drive unit.
8. Check or replace the PF drive unit and
refit all the removed parts.
Figure 1-5-184
Wire saddles
YC15
PF main PWB
Connector
PF main PWB
Band
Screws
PF drive unit
Screw
Screw
Screw Screw
Screw
Screw
