2N8/2N7
1-2-62

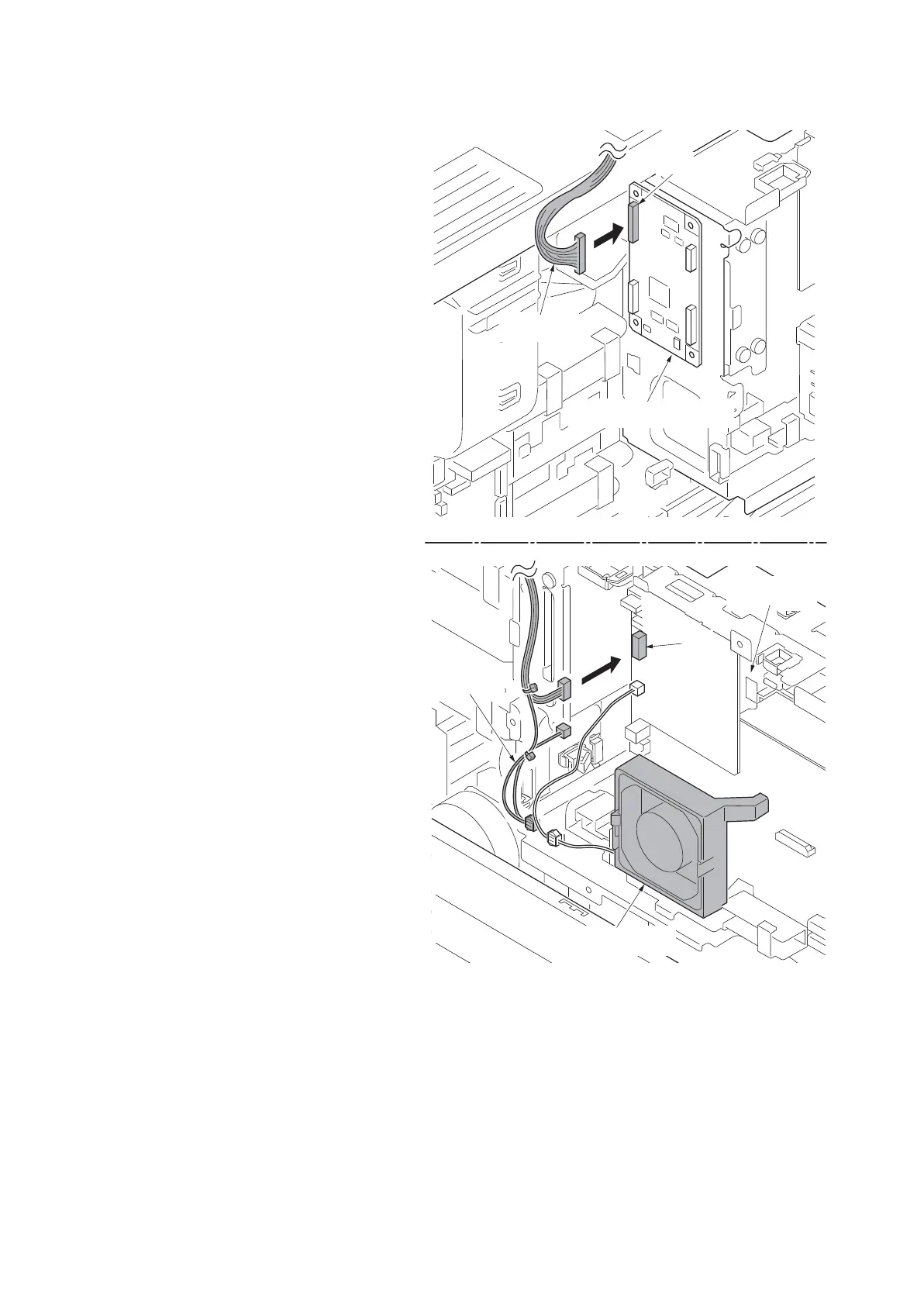

5. Connect the connector of the KMAS
wire to the connector YC1 on the KMAS
PWB.
6. Connect the connector of the KMAS
wire to controller fan motor, YC7 on the
main PWB.
Figure 1-2-92
KMAS interface PWB
KMAS wire
KMAS wire
YC7
Main PWB
Controller fan motor
YC1
