2N8/2N7
1-2-64

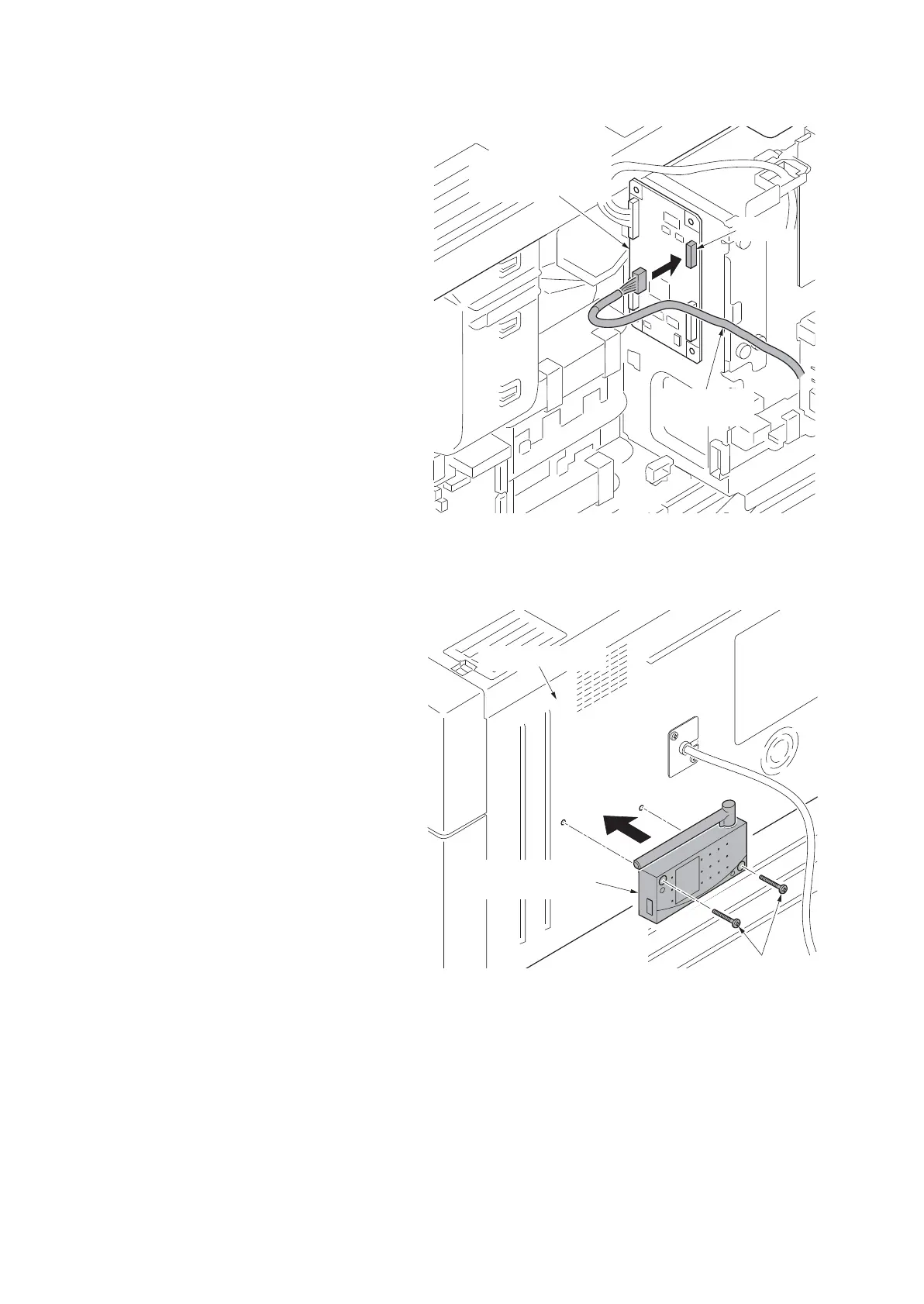

11. Connect the connector of the PHS sig-
nal cable to the connector YC2 on the
KMAS interface PWB.
12. Refit the rear upper cover.
Figure 1-2-95
13. Fit the PHS module to rear upper cover
using two M3 x 16 screws.
Figure 1-2-96
KMAS
interface PWB
PHS signal
cable
YC2
Rear upper cover
PHS module
M3 x 16 screws
