Kyocera TASKalfa 6501i - Page 647

2N8/2N7
1-5-35

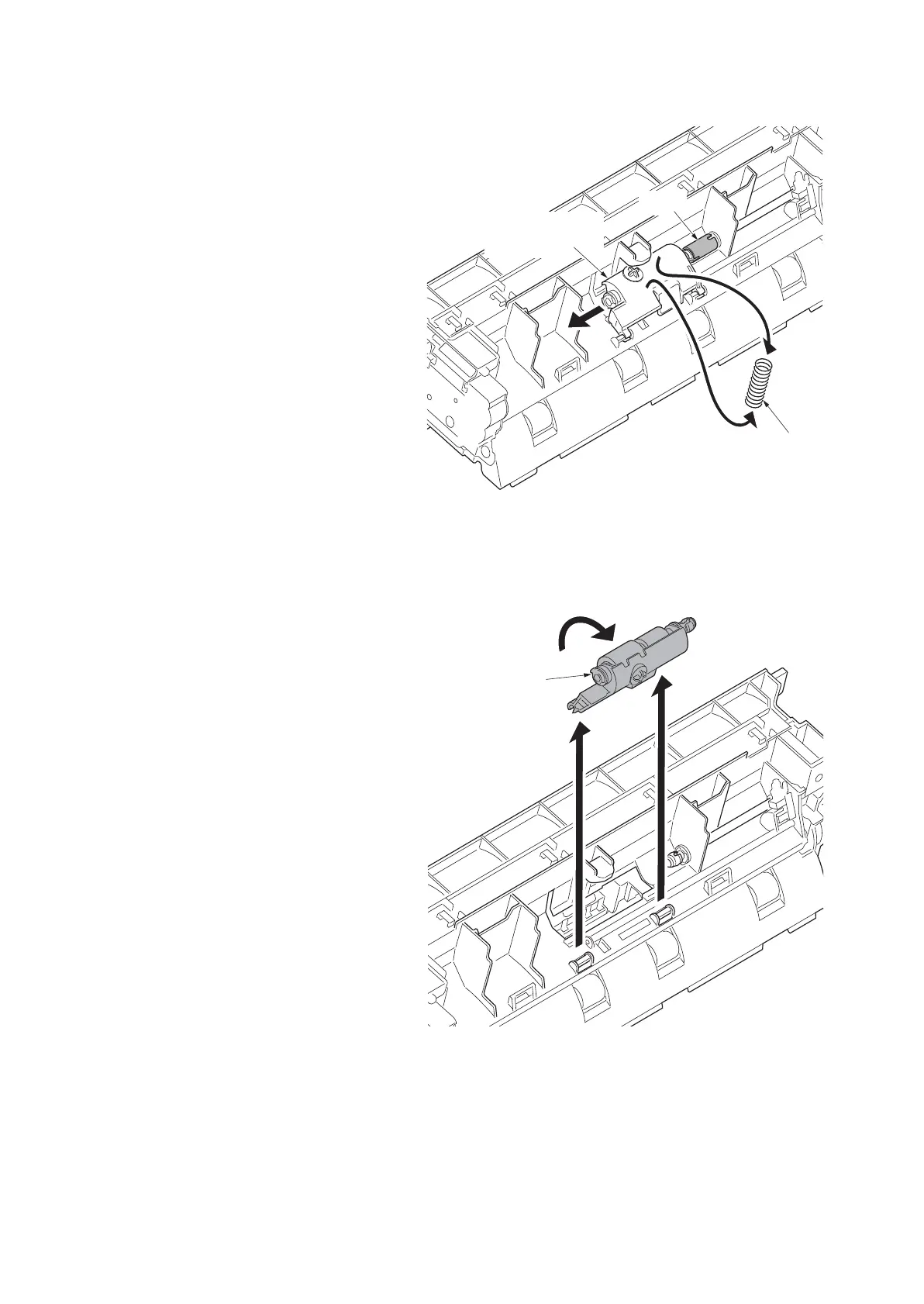

14. Remove the spring.
15. Release the uniting of joint by sliding
the retard holder assembly.
Figure 1-5-57
16. Remove the retard holder assembly by
turning it as shown.
Figure 1-5-58
Spring
Joint
Retard holder
assembly
Retard holder
assembly
