10. Remove two connectors.
11. Release the wire saddle. Remove the
screw and the remove the ground termi-
nal.
12. Remove two pins and then remove the
fuser IH unit.

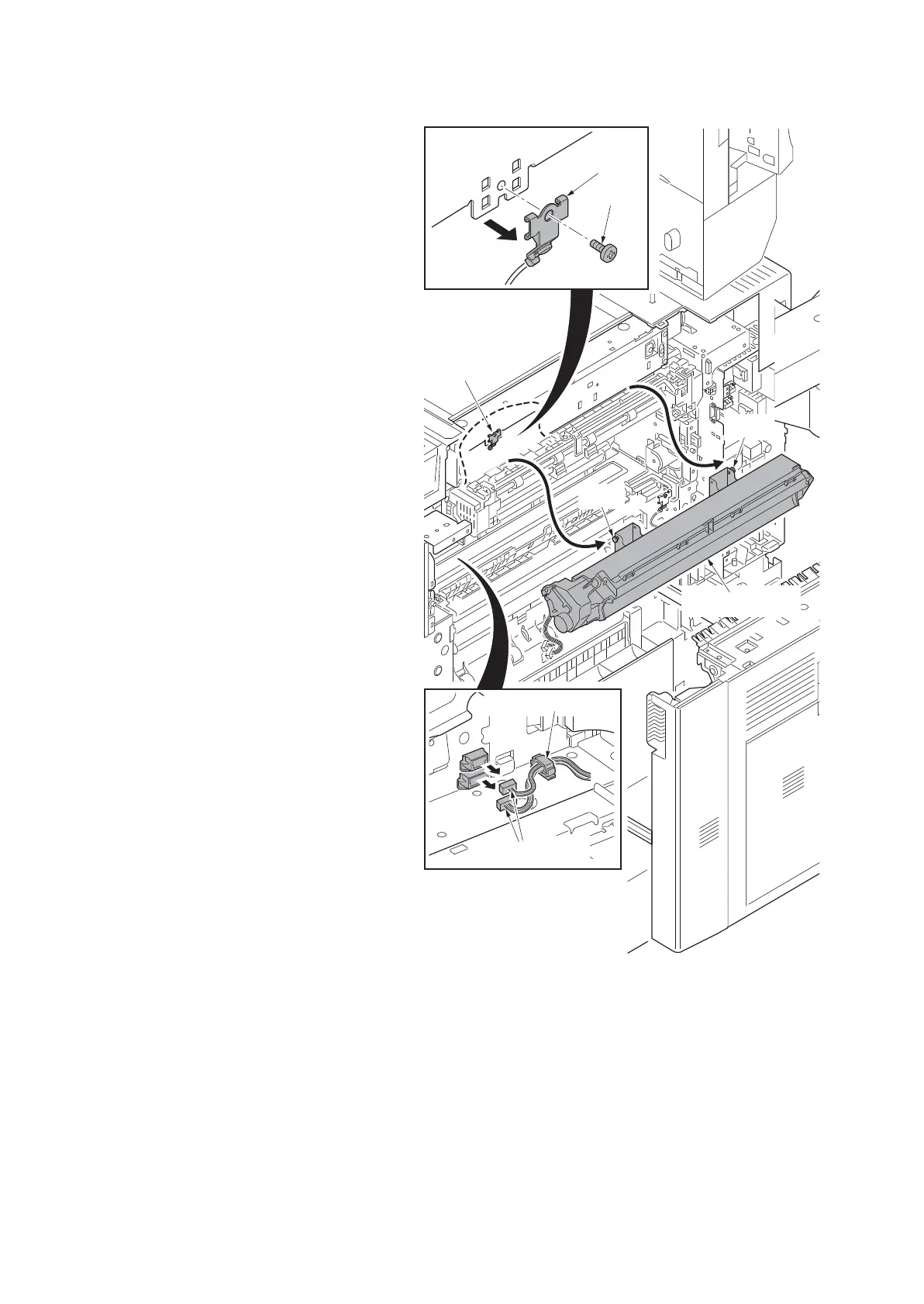

Figure 1-5-115
Pin
Pin
Fuser IH unit
Ground
terminal
Ground
terminal
Screw
Wire saddle
Connectors
