5. Remove the connector.
6. Release two wire saddles.

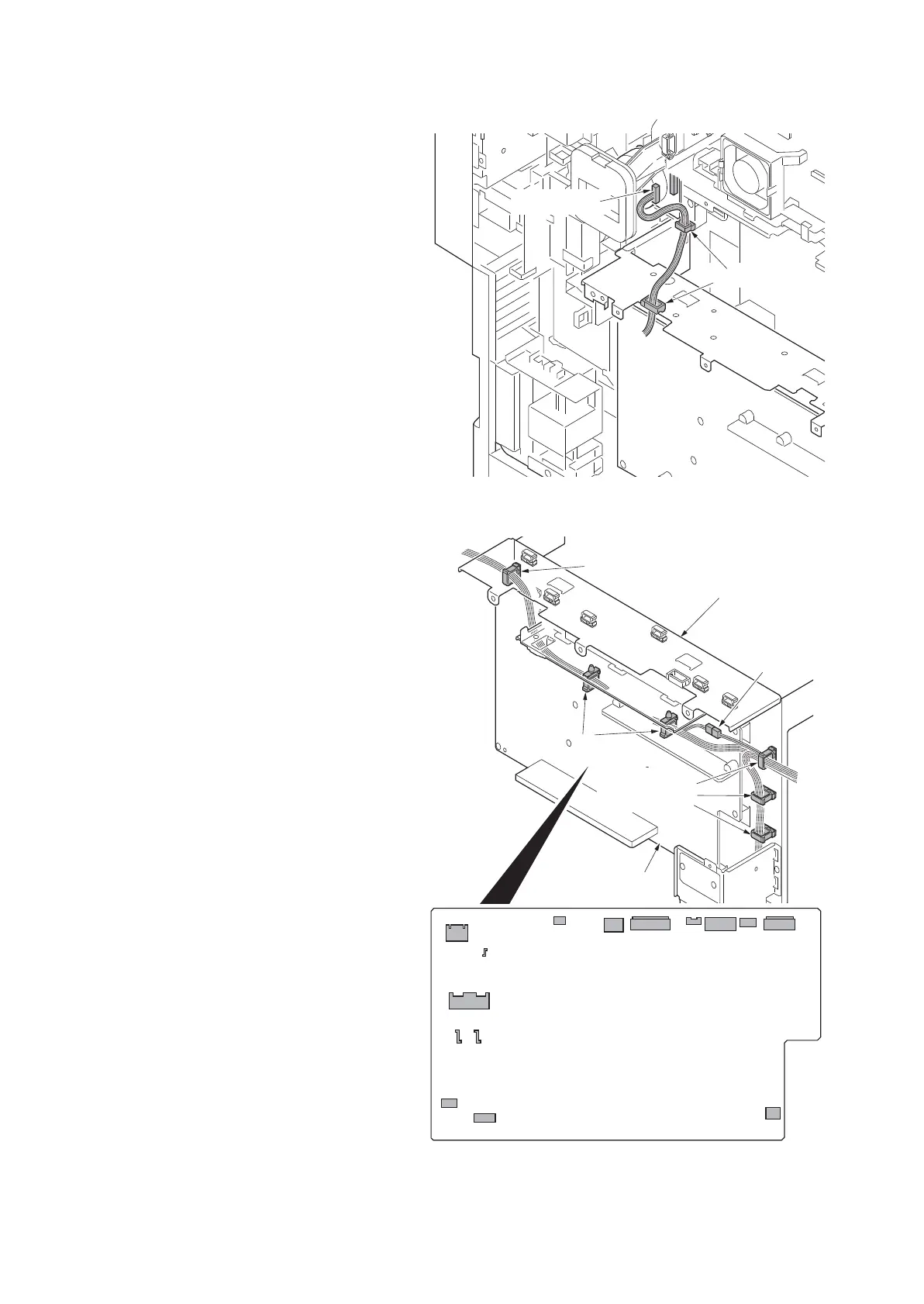

Figure 1-5-137
7. Release six wire saddles.
8. Remove the following eleven connec-
tors and three tabs from the power
source PWB.
YC1
YC3
YC4
TB1
TB2
TB5
YC8
YC9
YC10
YC11
YC12
YC13
YC14
YC16
YC17
9. Remove 2-pin relay connector.
Figure 1-5-138
Connector
Wire saddles
YC3
YC17
YC14
YC12
YC16
YC13
YC10
YC11
YC1
YC8
YC9
TB5
TB1
TB2
YC4
Wire saddle
Power source
assembly
2-pin relay
connector
Wire saddles
Wire saddles
Power source PWB
Power source PWB
