2N8/2N7
1-2-67

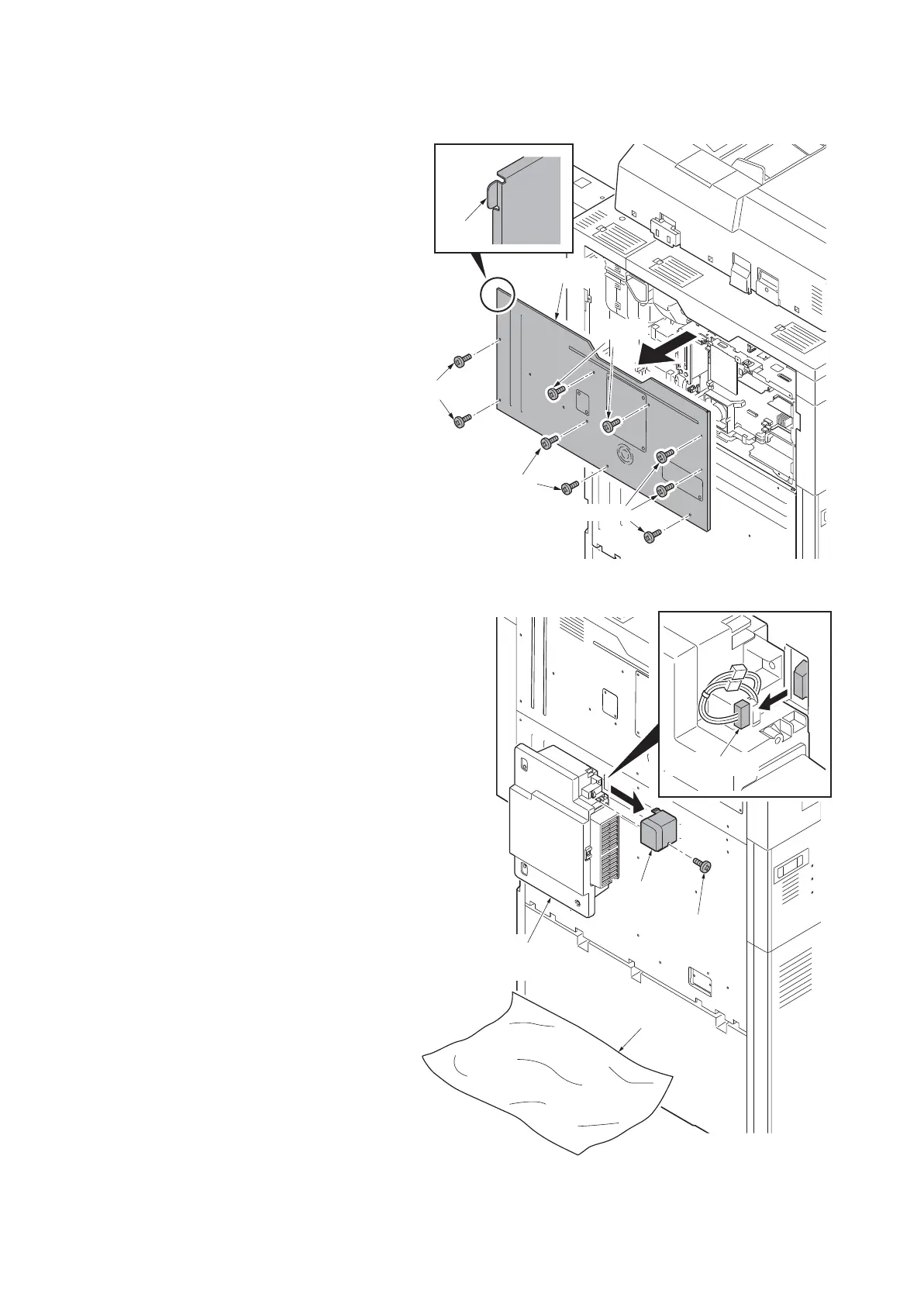

3. Remove nine screws and then remove
the rear upper cover.
*: To fix a cover, insert the hook at the left
top first by bowing the cover.
Figure 1-2-99
4. Cover the area under the toner disposal
box to prevent contamination due to the
scattered toner.
5. Remove the screw and then remove the
cable cover.
6. Remove connector.
Figure 1-2-100
Screws
Screws
Screws
Screws
Rear upper
cover
Hook
Connectors
Cable
cover
Screw
Toner disposal box
Sheet
To Next Page
