3-46 Service Manual
7525-63x

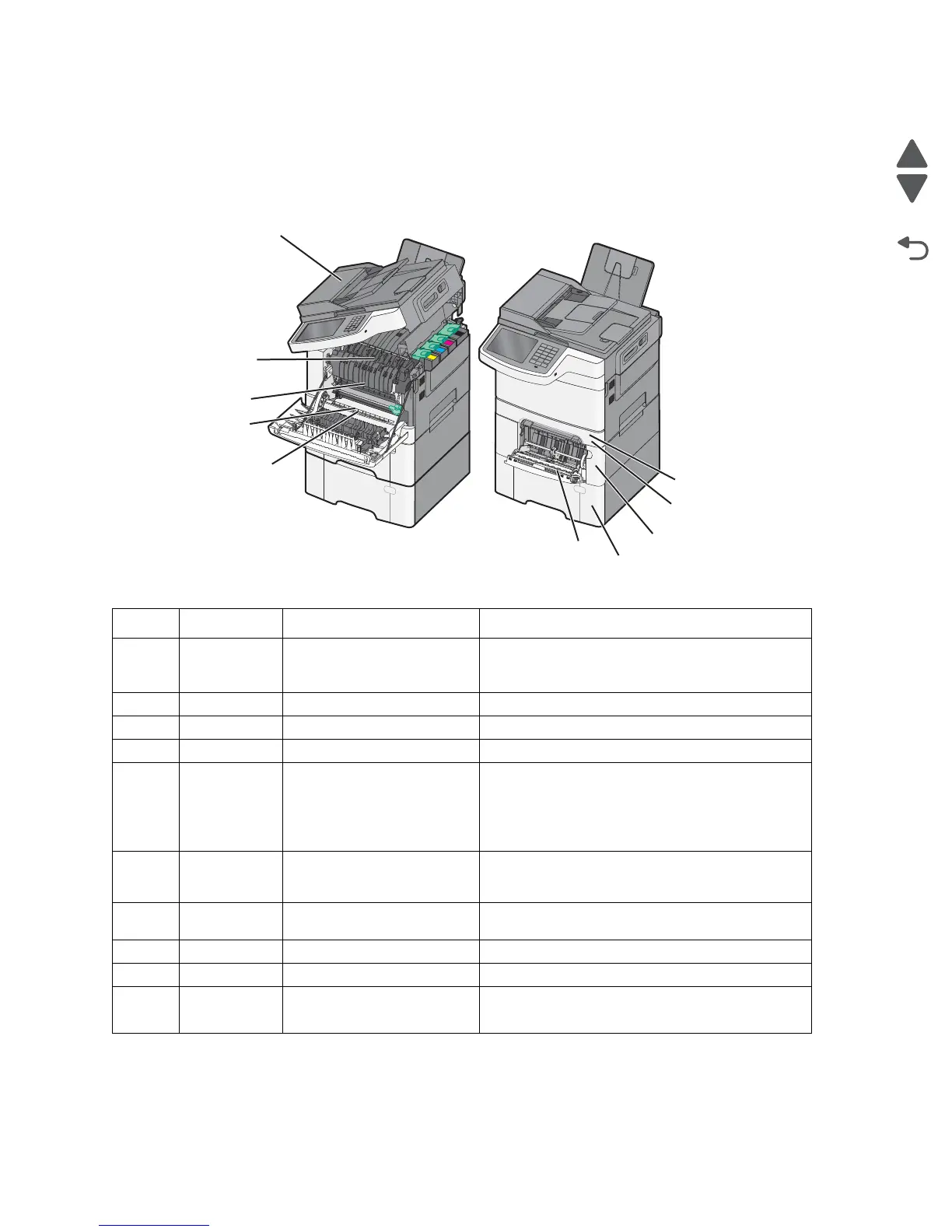

Understanding jam numbers and locations
When a jam occurs, a message indicating the jam location appears. The following illustration and table list the
paper jams that can occur and the location of each jam. Open doors and covers, and remove trays to access
jam locations
.
Jam number Jam location Instructions
1 200 In the standard 250-sheet
tray and manual feeder
(Tray 1)
See “200 paper jam” on page 3-47.
2 201 Under the fuser See “201 paper jam” on page 3-48.
3 202 In the fuser See “202 paper jam” on page 3-49.
4 230 In the duplex unit See “230 paper jam” on page 3-50.
5 235 In the duplex unit
Note: This jam number
indicates that the paper being
used for a duplex print job is
not supported.
See “235 paper jam” on page 3-50.
6 241 In the standard 250-sheet
tray and manual feeder
(Tray 1)
See “241 paper jam” on page 3-51.
7 242 In the 650-sheet duo drawer
(Tray 2)
See “242, 243 paper jam” on page 3-52.
8 243 In the 550-sheet tray (Tray 3) See “242, 243 paper jam” on page 3-52.
9 250 In the multipurpose feeder See “250 paper jam” on page 3-52.
10 29x In the ADF See “290–294 ADF paper jams” on page 3-53.
See “291.xx ADF paper jams” on page 3-54.
