5-4 Service Manual

7525-63x

Go Back

Previous

Next

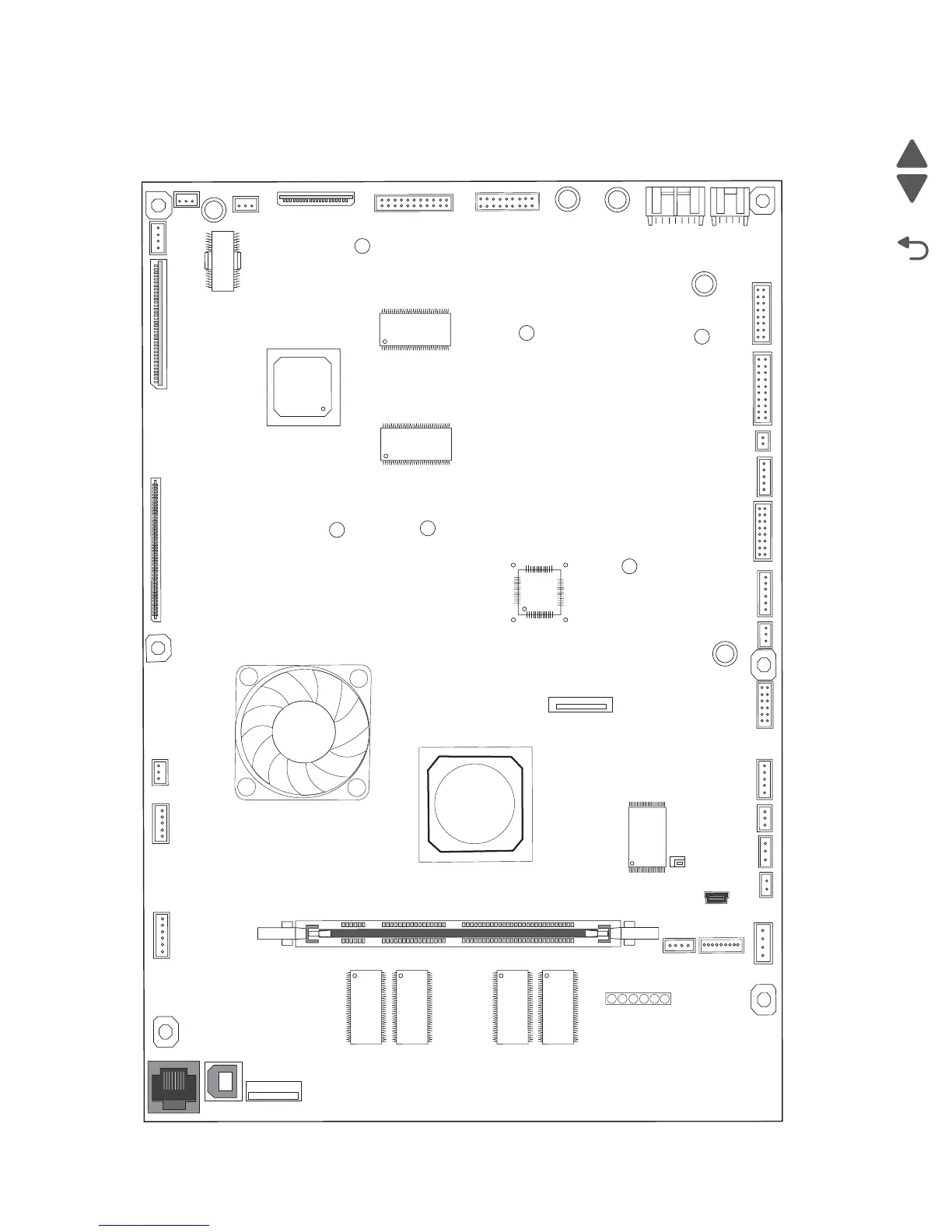

Printer boards

RIP board

JFAN1

JADF1

JFBM1

JCCD1

JPH1

JMIRR1

JCTM1

JSP1

JCARTB1

JTHM1

JTPS2

JHVPS1

JBIN1

JPJP1

JFUSES1

JTPS1

JTRAY1

JCVR1

JSC1

JINT1

JLVPS1

JWT1

1

1

JUIC1

JFPUS

B1

JFP1

JMOD2

JOPT1

JCFAN1

JHS1

JSJ1

JETH1

JUSB1

JBHUSB1

1

JWIRE1

JHD1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1
