4-102 Service Manual
7525-63x
Go Back
Previous
Next

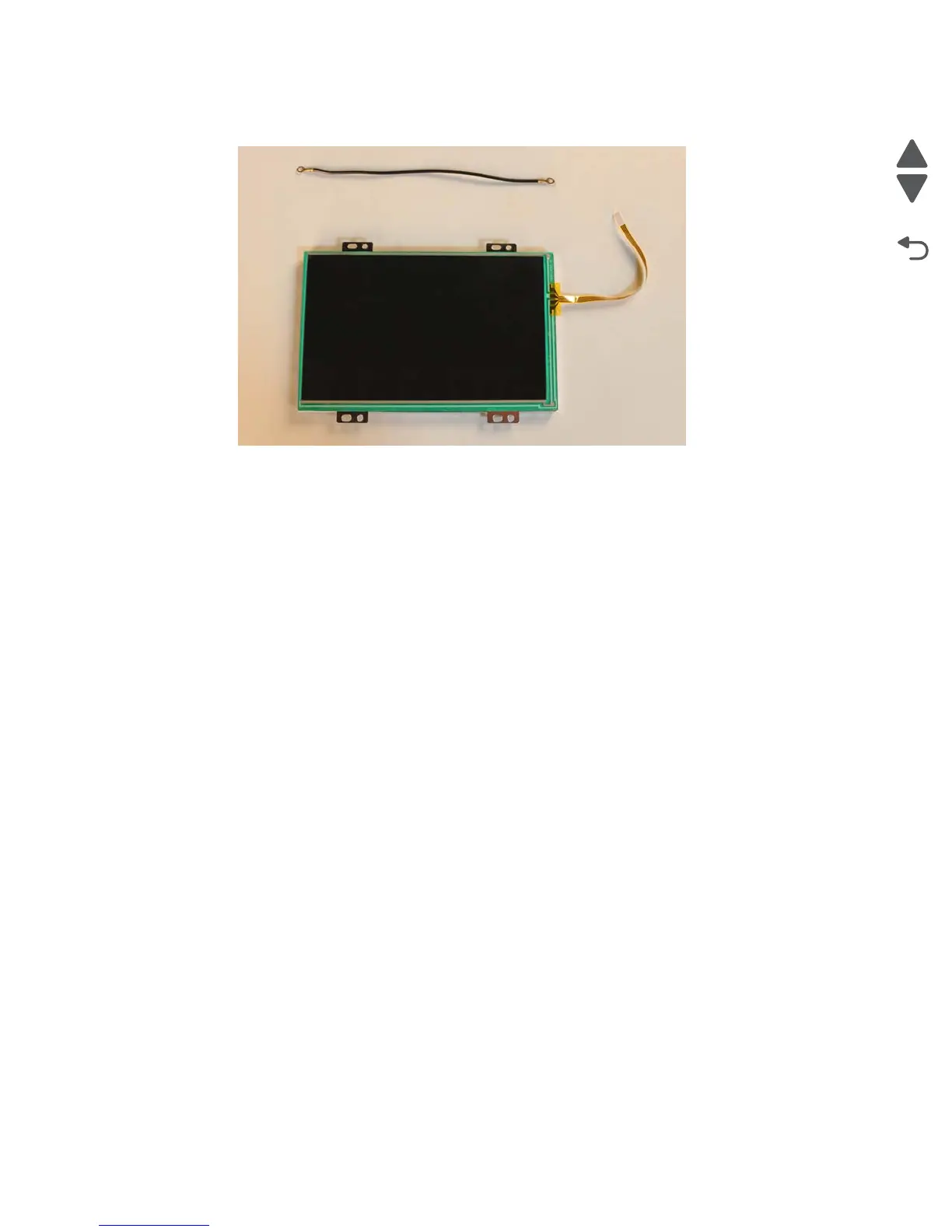

The LCD with the ground cable is shown below:
Operator panel assembly removal
1. Remove the AIO rear cable cover. See “AIO back cable cover removal” on page 4-8.
2. Remove the rear shield. See “Rear shield removal” on page 4-7.
3. Remove the left cover. See “Left cover removal” on page 4-4.
4. Remove the ADF unit. See “Duplex ADF removal” on page 4-87.
5. Remove the flatbed. See “Flatbed removal” on page 4-75.
6. Remove the three screws under the operator panel.
7. Unroute the cables from the flatbed, and remove the operator panel assembly.
