3-50 Service Manual
7525-63x

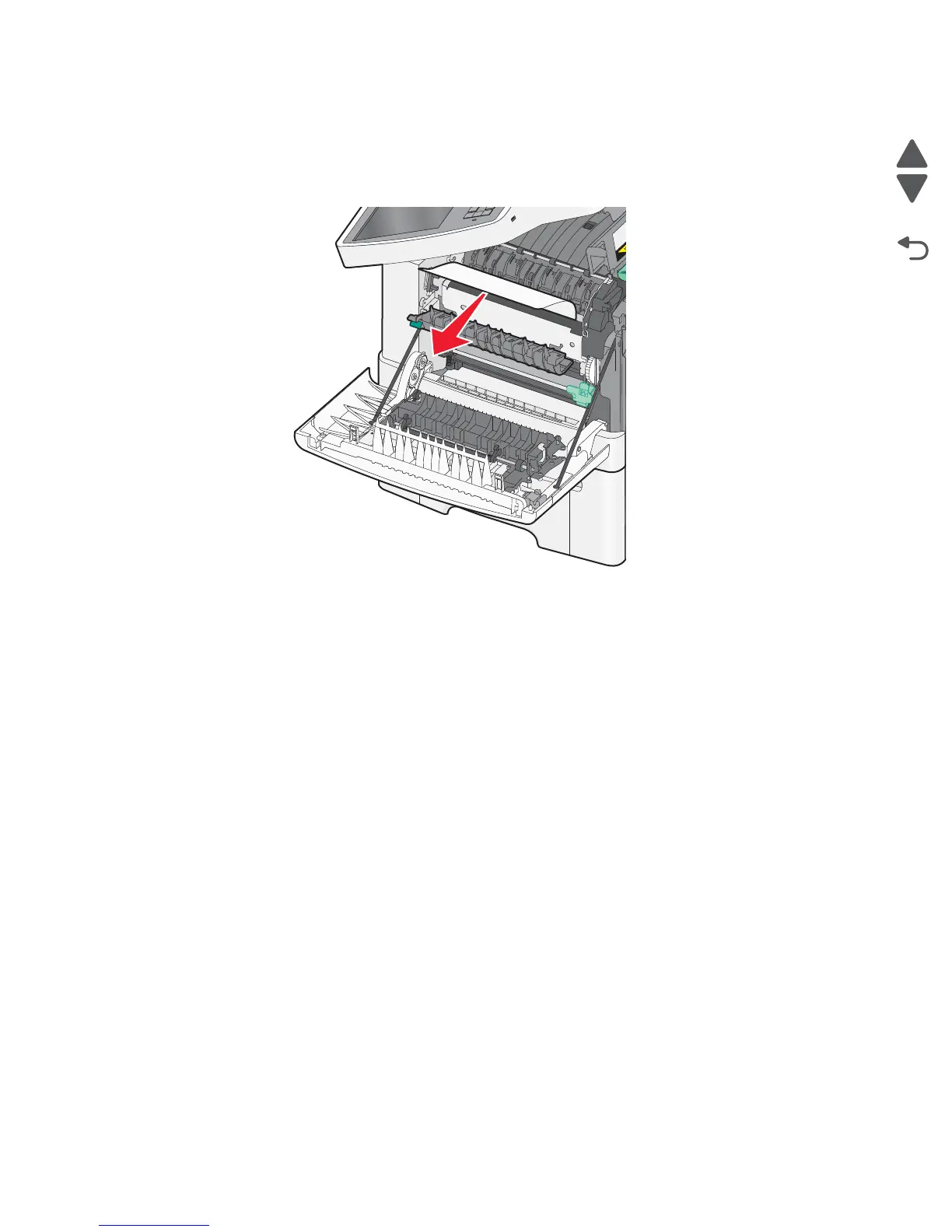

4. Hold the fuser cover down, and remove the jam.
Note:
• Make sure all paper fragments are removed.
• The fuser cover closes when released.
5. Close the fuser cover.
6. Close the front door.
7. From the printer display, touch Continue, jam cleared.
230 paper jam
1.
Open the front cover.
2. Grasp the jammed paper on each side, and gently pull it out.
Note: Make sure all paper fragments are removed.
3. From the printer display, touch Continue, jam cleared.
235 paper jam
This jam occurs when the paper is too short for the duplex unit.
1. Open the front cover.
2. Grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
3. Load the tray with the correct paper size.
4. Insert the tray.
5. Close the front door.
6. From the printer display, touch Continue, jam cleared.
