Lexmark X548 Series Service Manual

Repair information 4-89
7525-63x
Go Back
Previous
Next
ADF cable removal
1. Remove the the duplex ADF rear cover. See “Duplex ADF rear cover removal” on page 4-86.
2. Remove the left cover. See “Left cover removal” on page 4-4.
3. Remove the AIO back cable cover. See “AIO back cable cover removal” on page 4-8.
4. Remove the rear shield. See “Rear shield removal” on page 4-7.

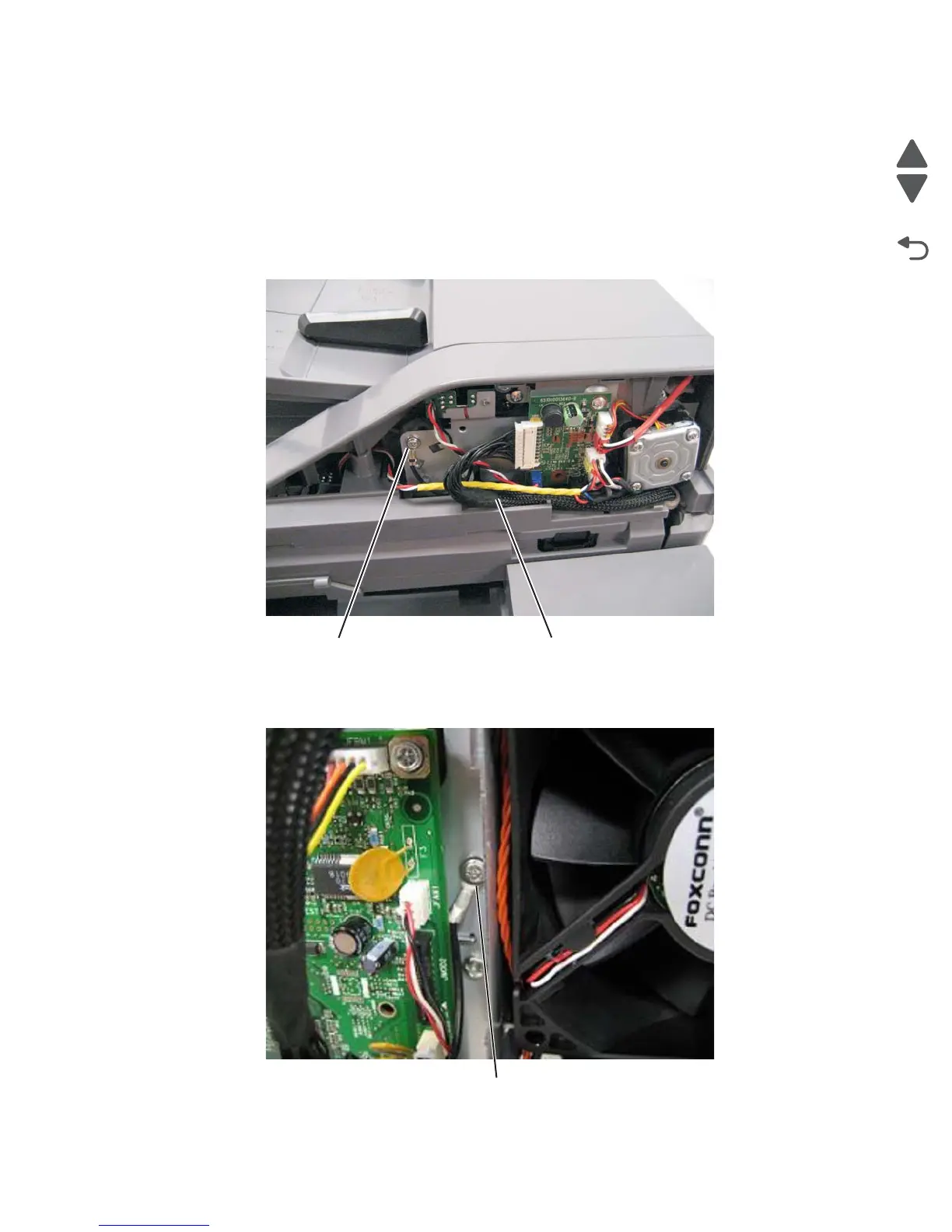

5. Disconnect the ground cable (A) from the ADF assembly.
6. Disconnect the ADF cable (B) from the relay card in the ADF unit.
7. Disconnect the ADF cable from connector JADF1 on the RIP board.
8. Disconnect the ground cable (C) from the print engine.
A B
C
