Repair information 4-23

7525-63x

Go Back

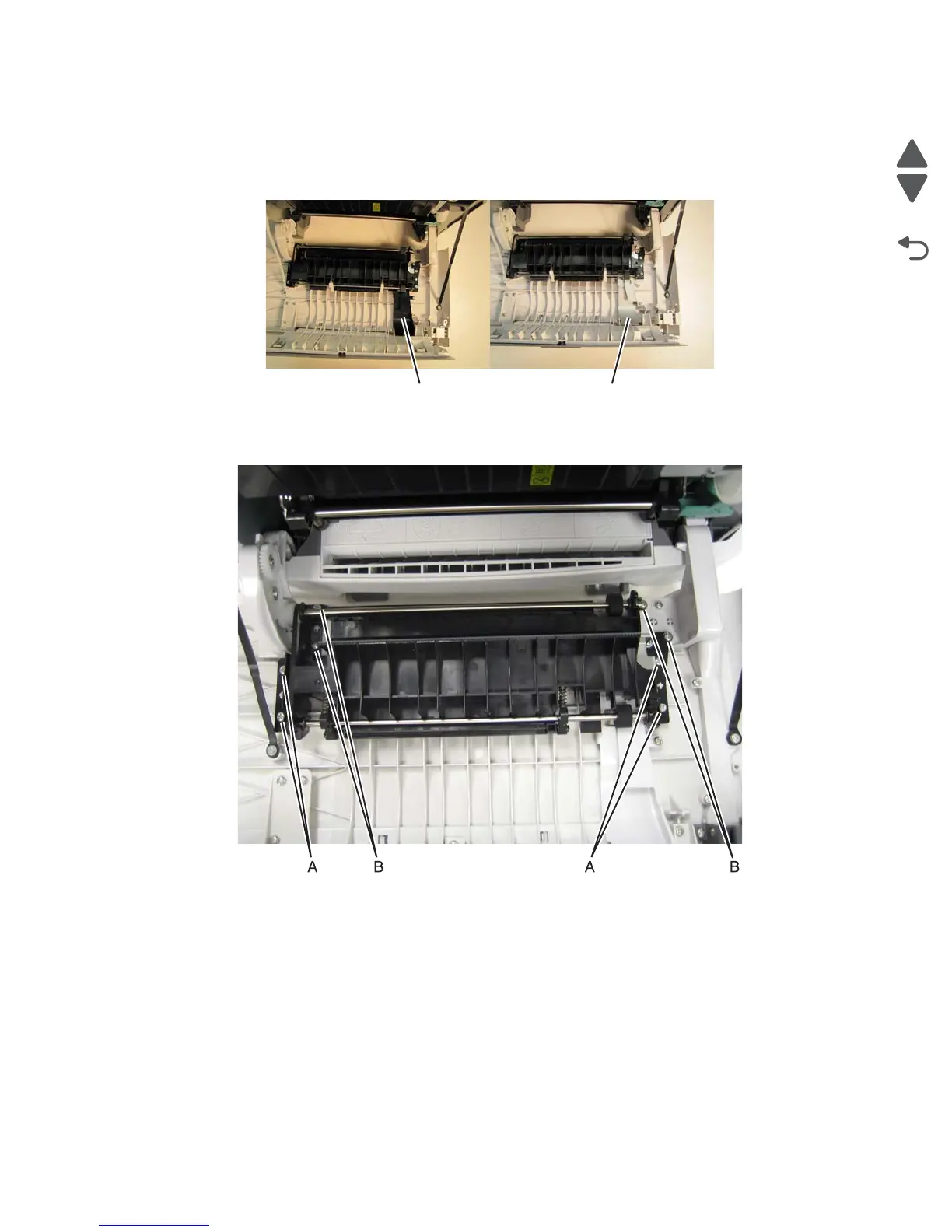

Duplex reference edge removal

Note: If the duplex reference edge is made of plastic, then replace it.

If the duplex reference edge is made of metal, then do not replace it.

1. Open the front door.

2. Remove the four short screws (A) in front, and the four longer screws (B) in the back of the duplex aligner.

Plastic Metal
