Repair information 4-7

7525-63x

Go Back

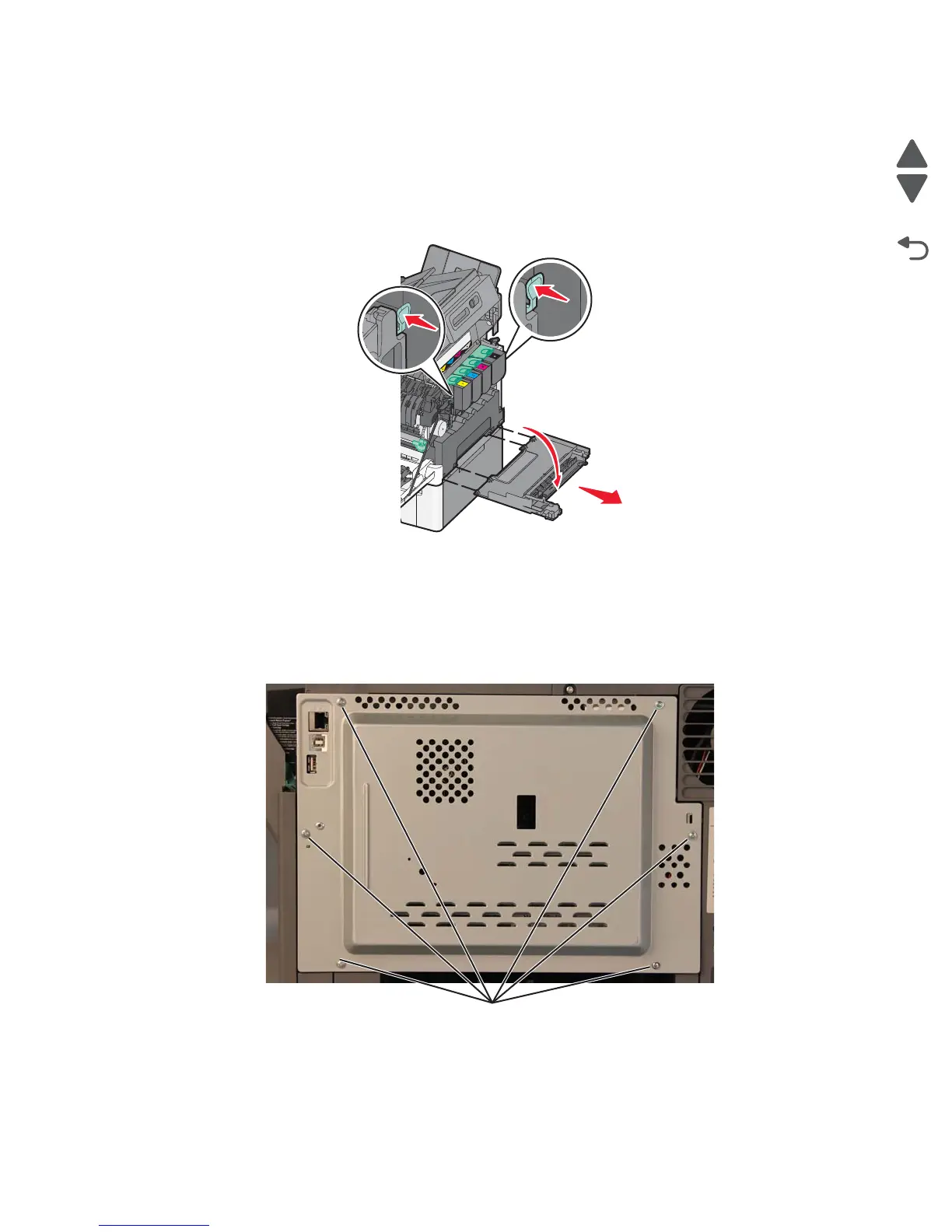

Right cover removal

1. Lift and lock the flatbed assembly to the raised position.

2. Open the front cover.

3. Release the green latches securing the door.

4. Lower the right cover and remove it from the hinges.

Rear shield removal

The rear shield is not a field replaceable unit (FRU).

1. Remove the six screws (A).

2. Remove the rear shield.
