Repair information 4-61
7525-63x
Installation notes:

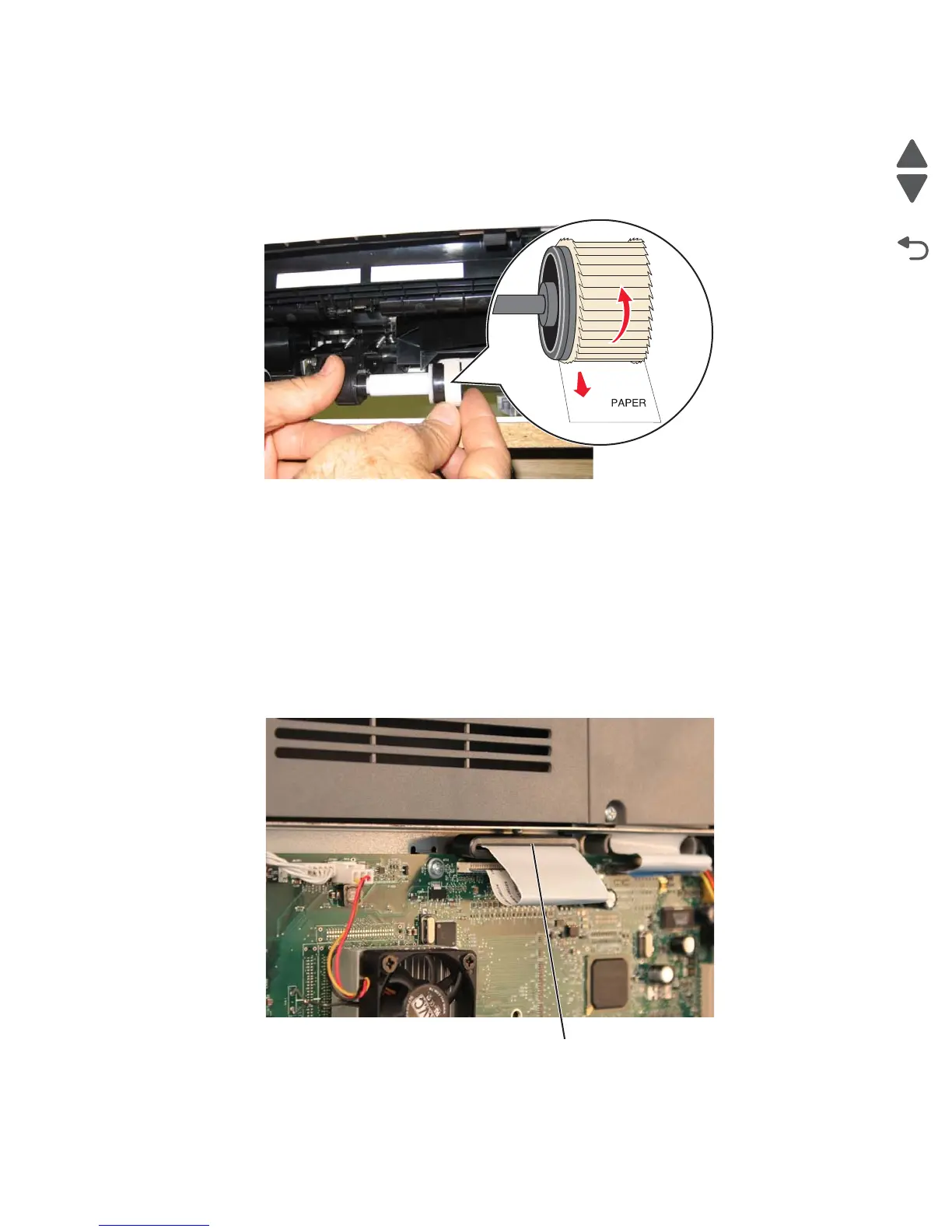

Install the new rubber tires with the surface texture turning in the direction as shown.
Note: Feel each rubber surface to verify it turns properly in the direction shown.
Printhead removal
1. Remove the scanner assembly. See“Flatbed removal” on page 4-75.
2. Remove the top cover. See “Top cover assembly removal” on page 4-9.
3. Disconnect the cables.
4. Remove the printhead cable toroid (A) from the flat cable.
Note: Tuck the printhead cable toroid as shown below when reinstalling. Failure to do so can damage the
RIP board.
To Next Page
