Diagnostic aids 3-13
7525-63x

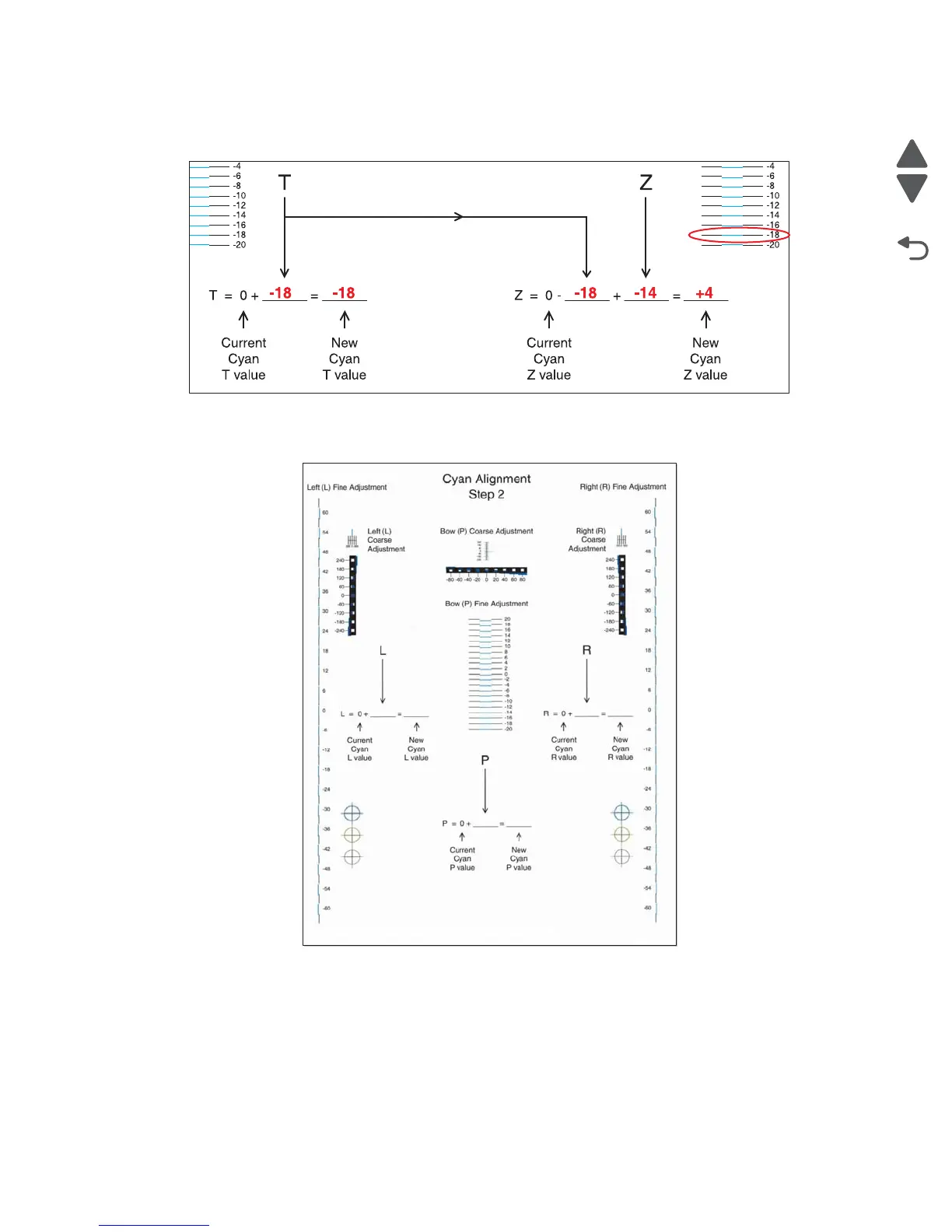

6. Select the Skew value in the same way, and touch Submit. Print the Alignment pages to see if the
observed values and the current values are the same.
7. On the second page of the latest Quick Test pages printed, proceed to Step 2; adjust the left, right, and
bow settings. Continue printing the Quick Test after each adjustment to verify the settings.
8. Continue on to the other two colors in the same manner.
Factory Scanner
Note: This setting is not used by field service.
Factory Manual
Note: This setting is not used by field service.
