Toner meter cycle (TMC) card removal
1. Remove the right cover. See “Right cover removal” on page 4-7.
2. Remove the waste toner bottle. See “Waste toner bottle removal” on page 4-73.
3. Remove the imaging unit (IU). See “Imaging unit (IU) removal” on page 4-63.
4. Remove the rear shield. See “Rear shield removal” on page 4-7.

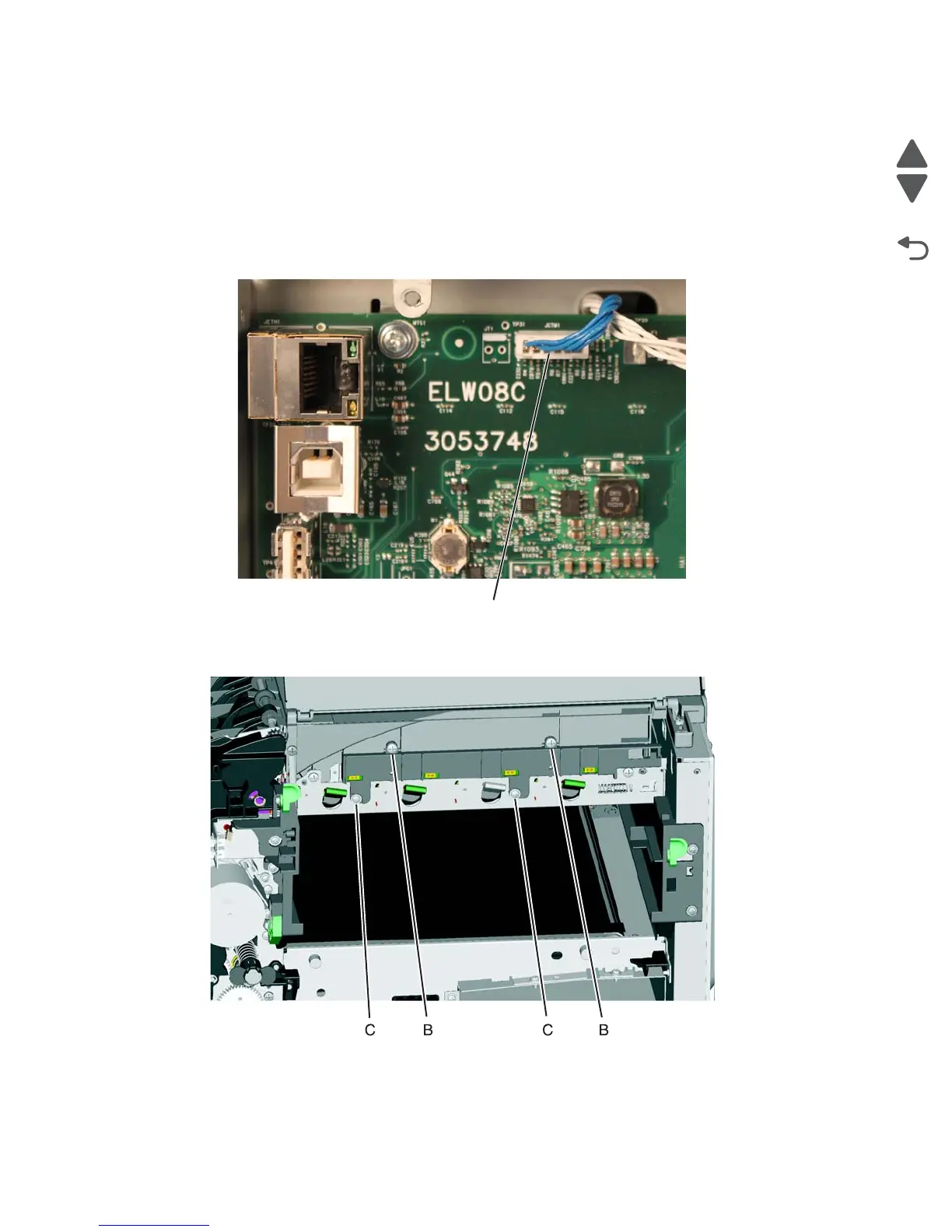

5. Disconnect and remove the toner meter cycle card cable (A).
Note: Observe the cable routing for reinstallation.
6. Remove the two plastic screws (B) and the two metal screws (C), and remove the card.
