Repair information 4-67
7525-63x
Go Back
Previous
Next
Installation notes:
• Be sure the cable runs through the retainer.
• The toner meter cycle card is a tight fit. Insert the bottom edge inside the frame, and then push down
on the top edge to clear the top cover.

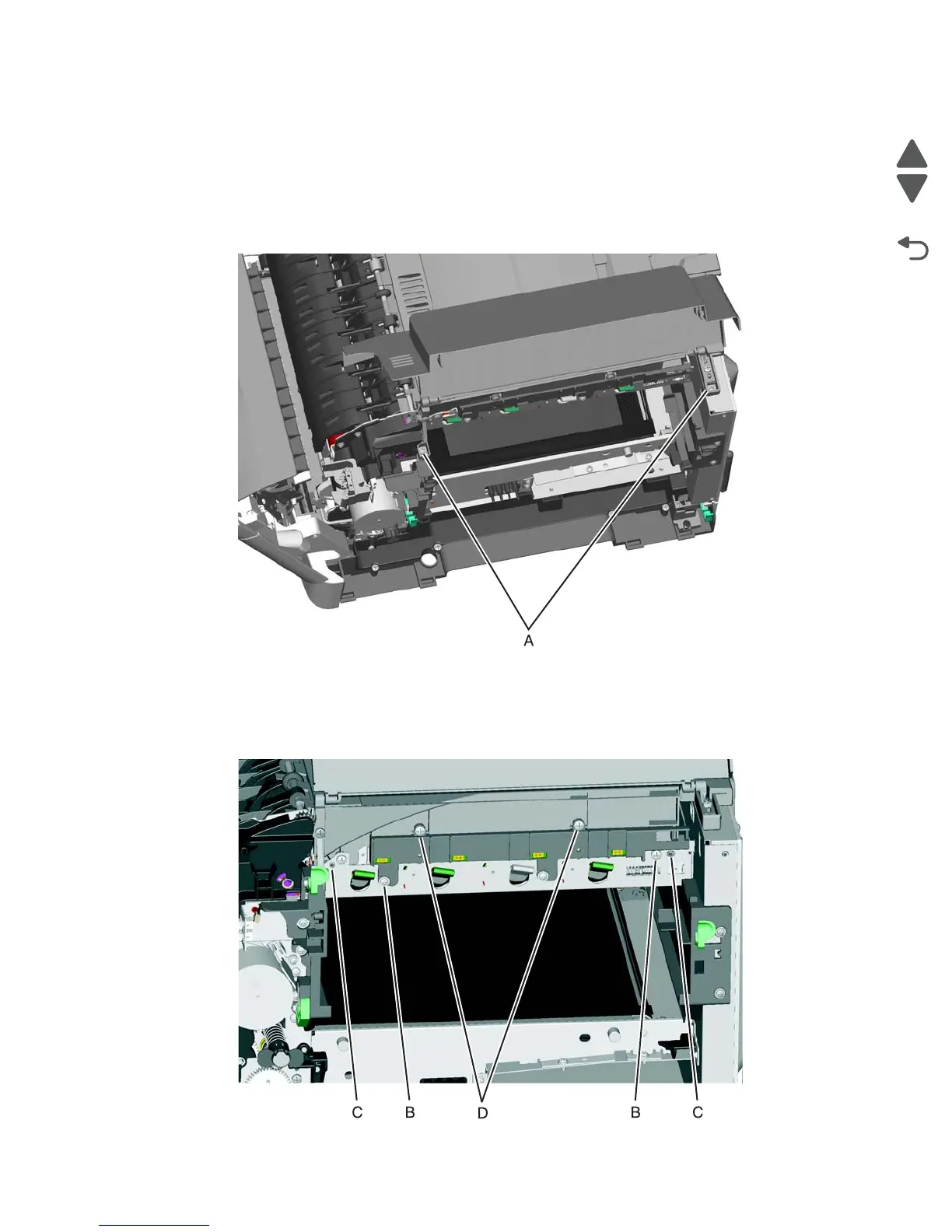

• In some cases, the top cover will have to be loosened so the right edge of the top cover can be lifted
to get the toner meter cycle card back into position:
1. Remove the two machine screws (A).
2. Remove the two screws (B).
3. Push in on the cover above the locating pins (C) while lifting to disengage the cover. Carefully lift
the cover just enough for clearance for the toner meter cycle card.
4. Position the toner meter cycle card.
5. Replace the screws (D), and replace the top cover.
