Repair information 4-85

7525-63x

Go Back

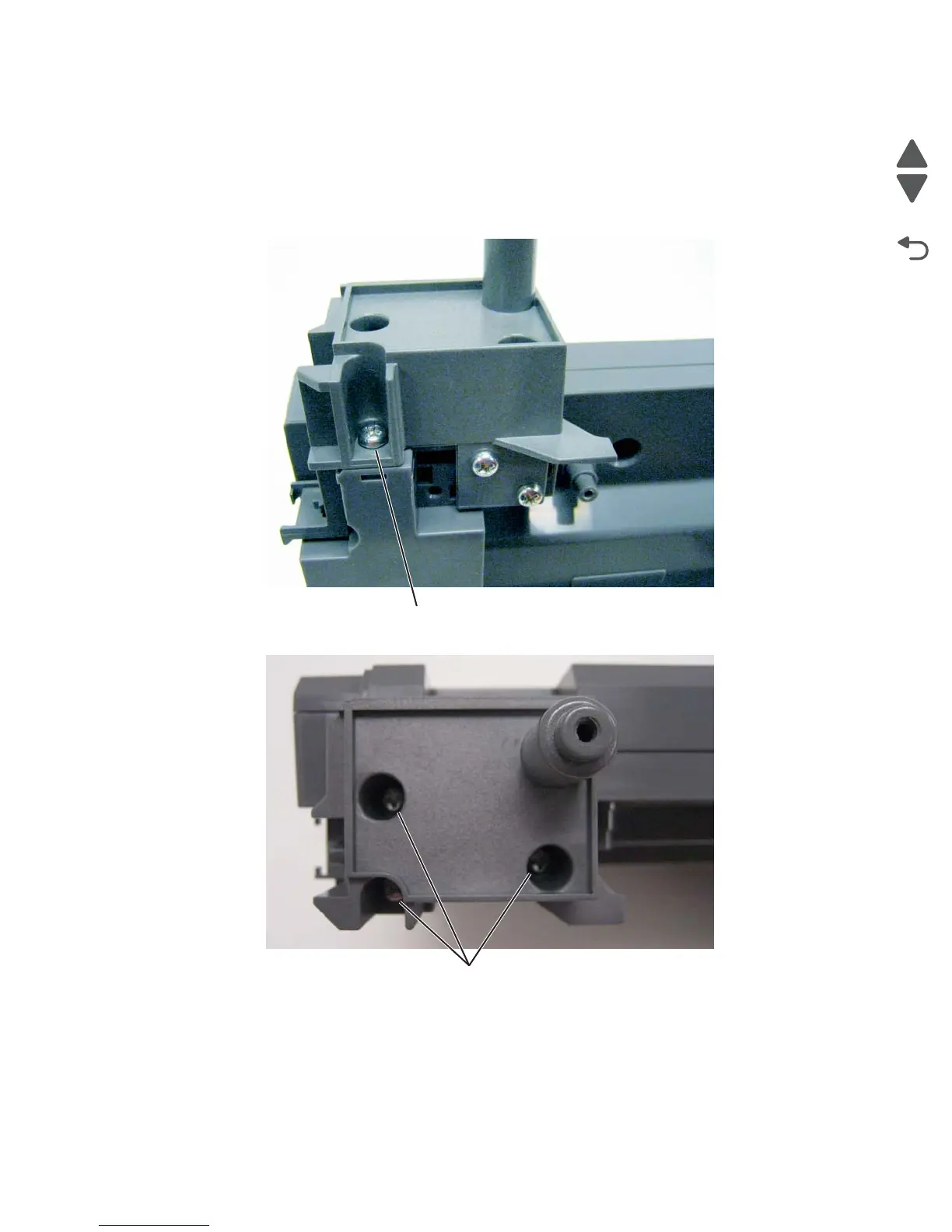

Flatbed pivot link removal

1. Remove the AIO link. See “AIO link removal” on page 4-97.

2. Remove the right scanner cover. See “Scanner right cover removal” on page 4-94.

3. Remove the AIO release lever. See “AIO release lever removal” on page 4-96.

4. Remove the screws (A) securing the flatbed link to the flatbed.

5. Remove the flatbed pivot link.
