200 paper jam

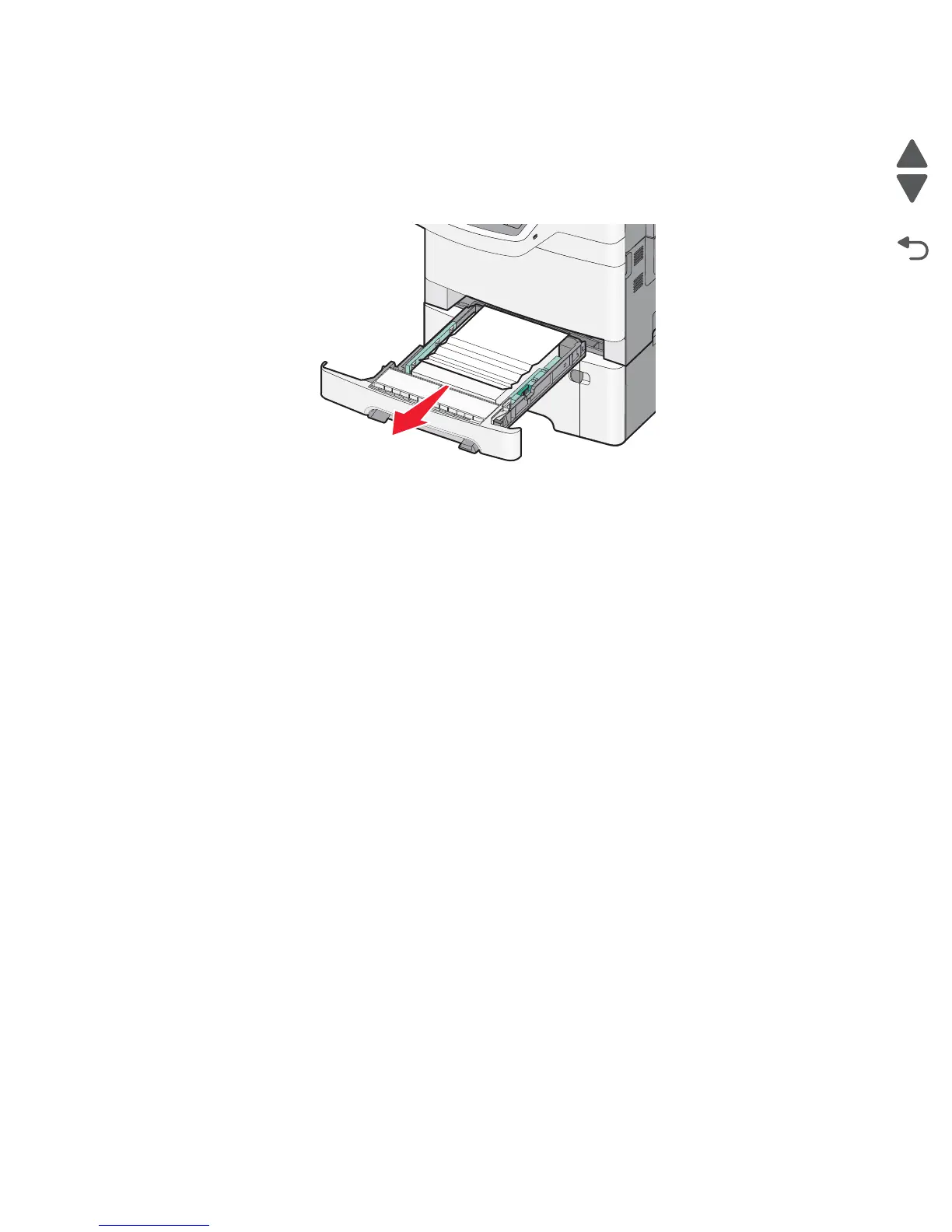

Pull out the standard 250-sheet tray (Tray 1).

2. Grasp the jammed paper on each side, and gently pull it out.

Note: Make sure all paper fragments are removed.

3. Insert the tray.

4. From the printer display, touch Continue, jam cleared.
