Lexmark X548 Series - Operator Panel Bezel Removal

To Next Page

To Previous Page

4-104 Service Manual

7525-63x

Go Back

Operator panel bezel removal

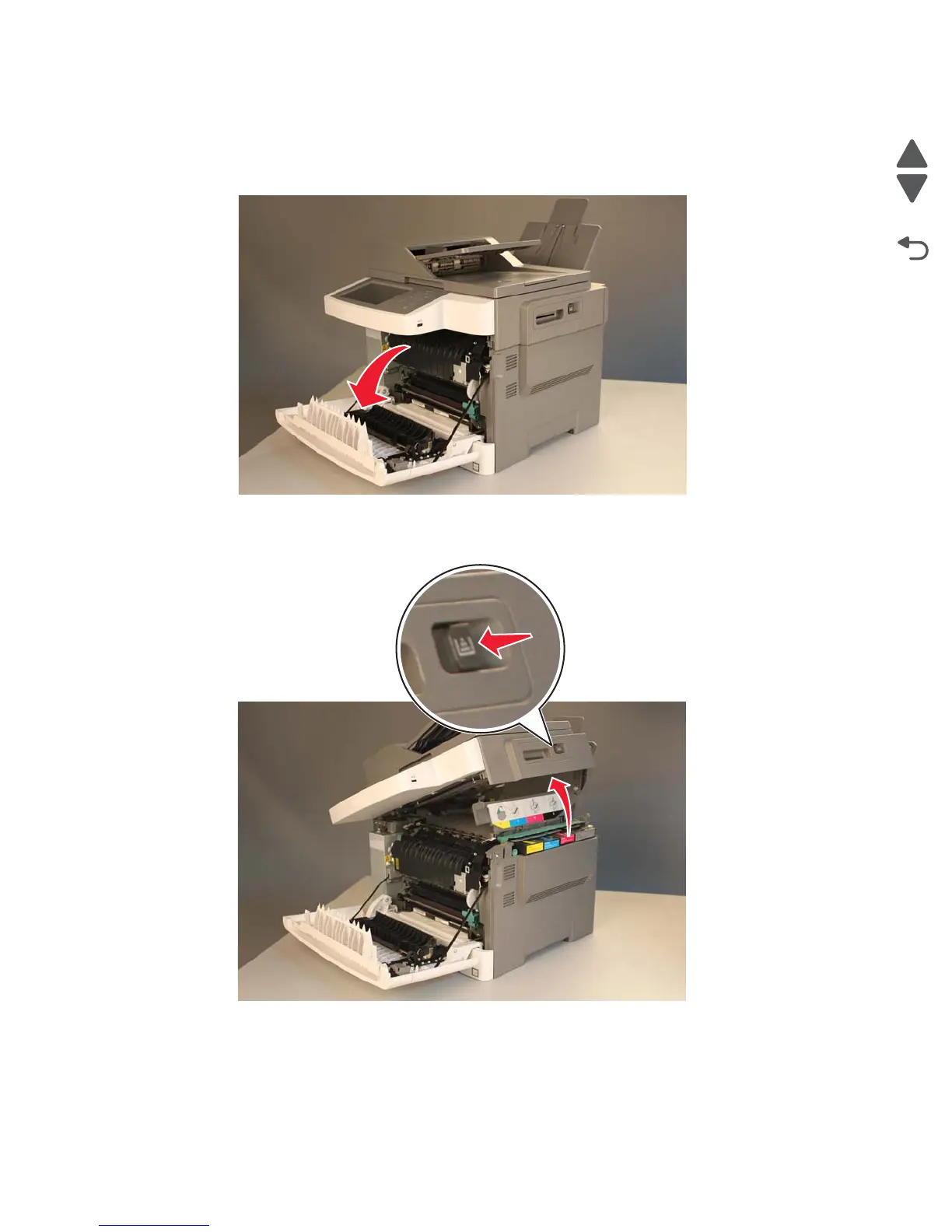

1. Open the front door.

2. Open the top door.
