Repair information 4-31

7525-63x

Go Back

Fax card removal

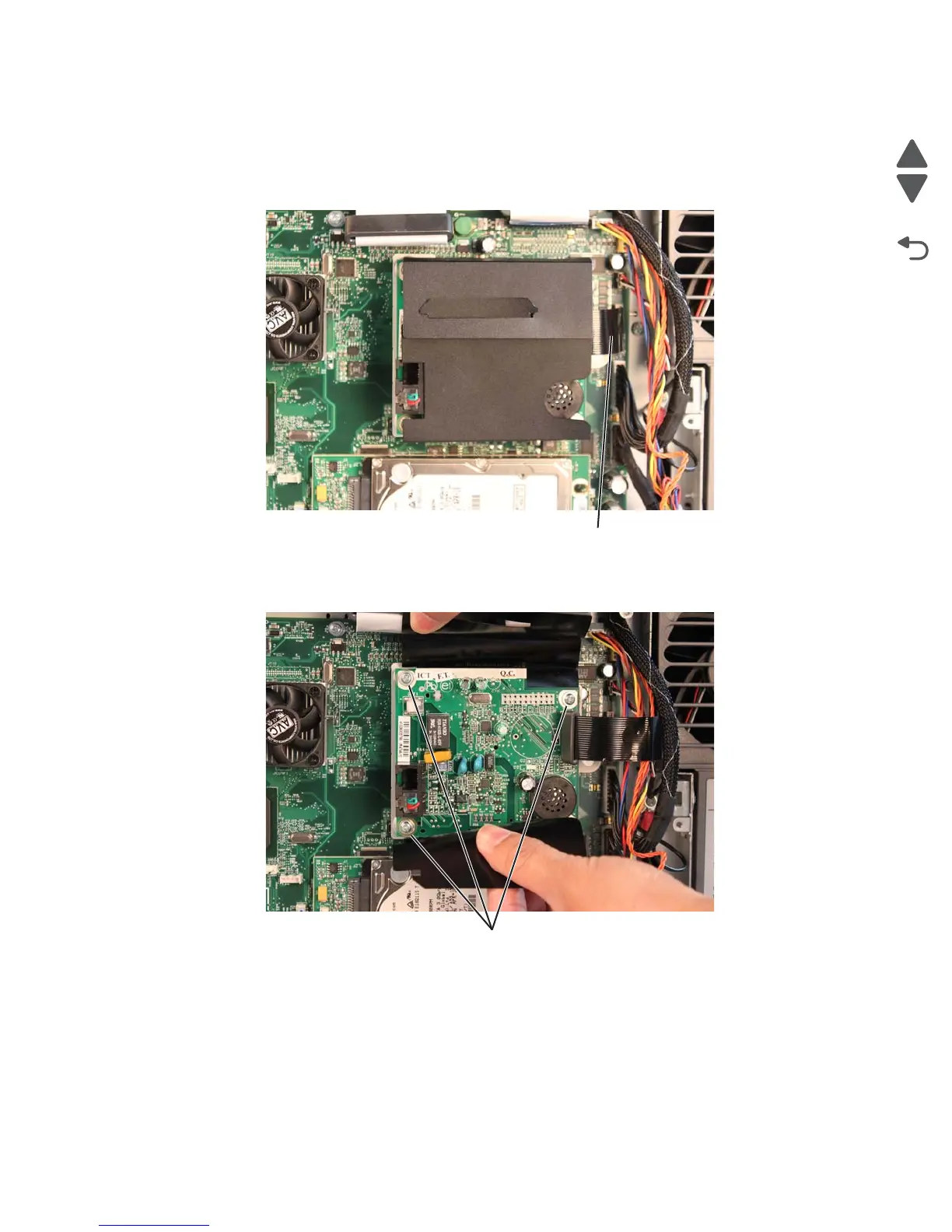

1. Remove the rear shield. See “Rear shield removal” on page 4-7.

2. Disconnect the fax card cable (A) from the RIP board.

3. Open the fax card cover, and remove the three screws (B) from the fax card.
