Lexmark X548 Series - Hard Drive Removal

To Next Page

To Previous Page

Repair information 4-39

7525-63x

Go Back

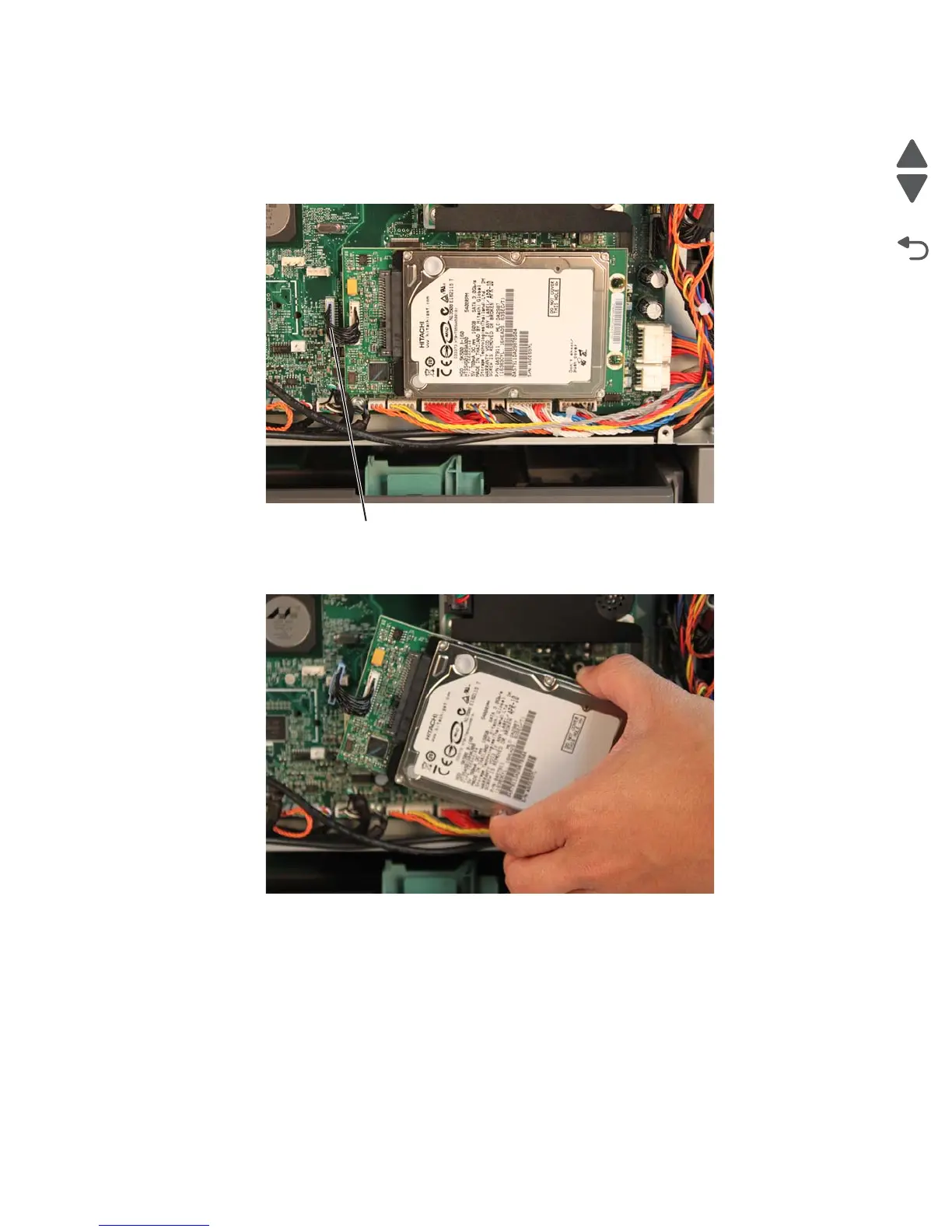

Hard drive removal

1. Remove the rear shield. See “Rear shield removal” on page 4-7.

2. Disconnect the hard drive cable (A) from the RIP board.

3. Pull the hard drive and remove.
