4-4 Service Manual

7525-63x

Go Back

Front middle cover removal

1. Open the front cover.

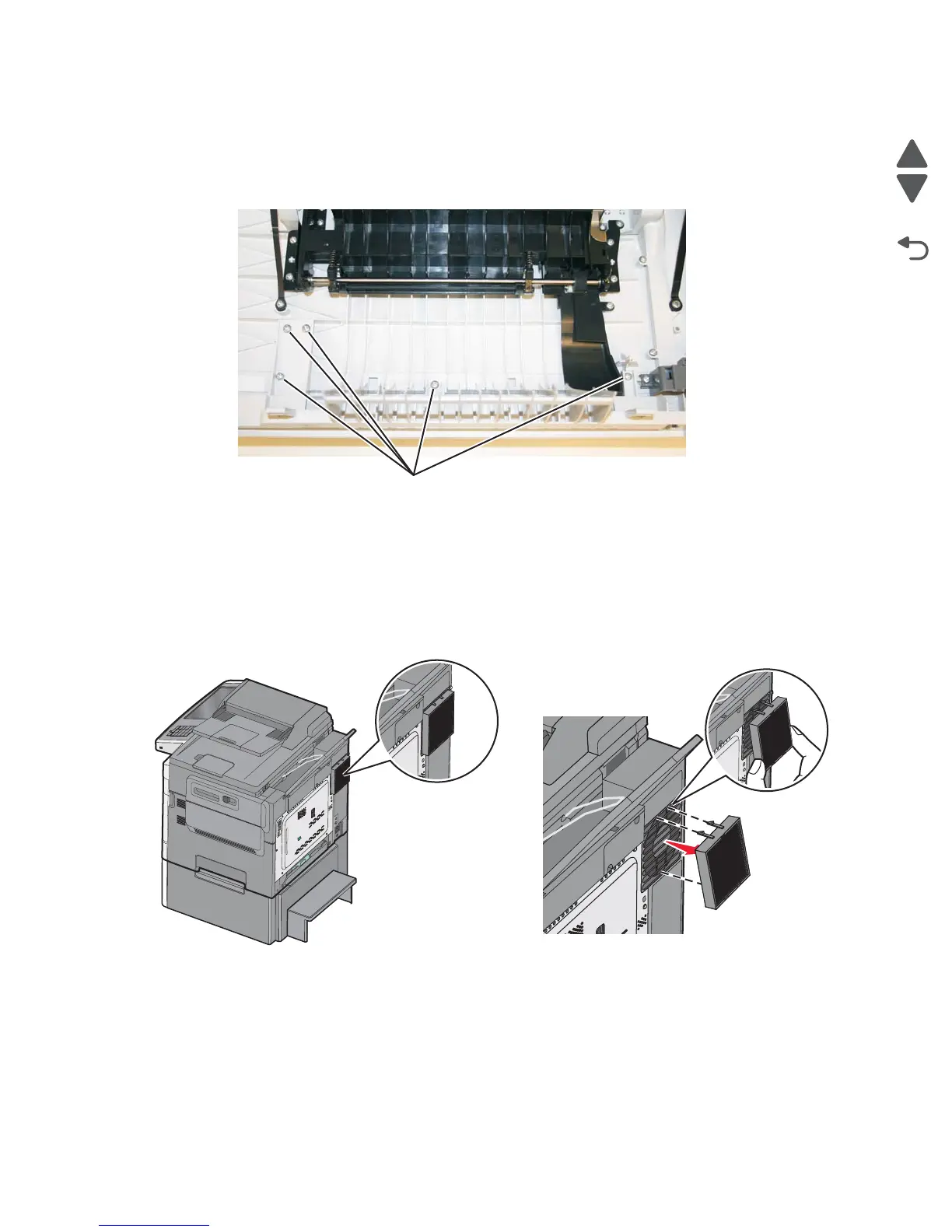

2. Remove the five screws (A) securing the front middle cover to the lower front cover.

3. Pull the front middle cover away from the front cover.

Left cover removal

Note: Some printers may have a filter installed on the fan grill. Remove the filter before continuing with the

removal procedure.

1. Remove the media tray.

2. Open the front cover.

3. Position the printer with the left side hanging over the edge of the table.

Default Chapter3
