Bin full sensor removal

1. Remove the flatbed unit. See “Flatbed removal” on page 4-75.

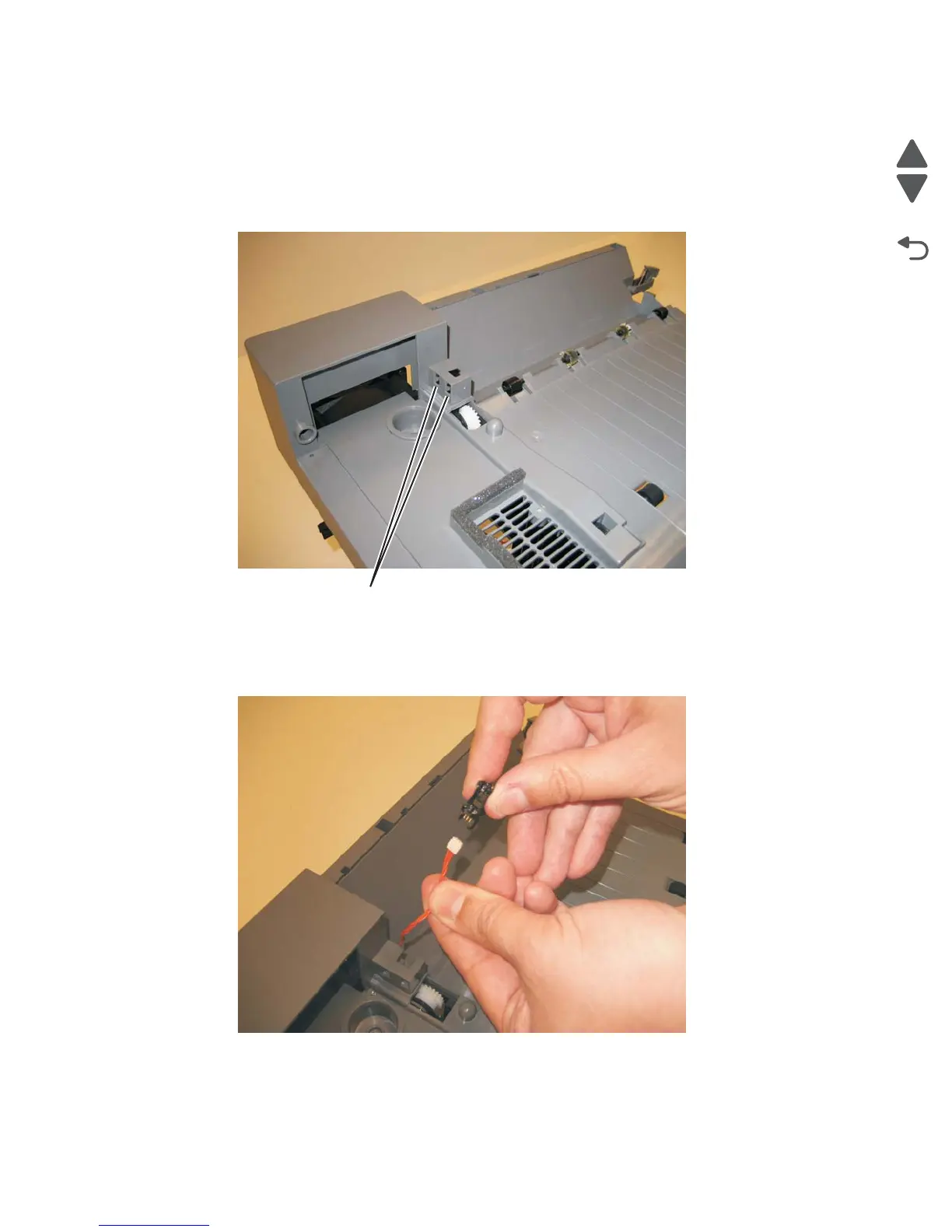

2. Using a small flat-blade screwdriver, gently depress the tabs (A) which secure the sensor to the top cover

assembly.

3. Pull the sensor away from the top cover assembly.

4. Disconnect the sensor from the cable.
