4-36 Service Manual

7525-63x

Go Back

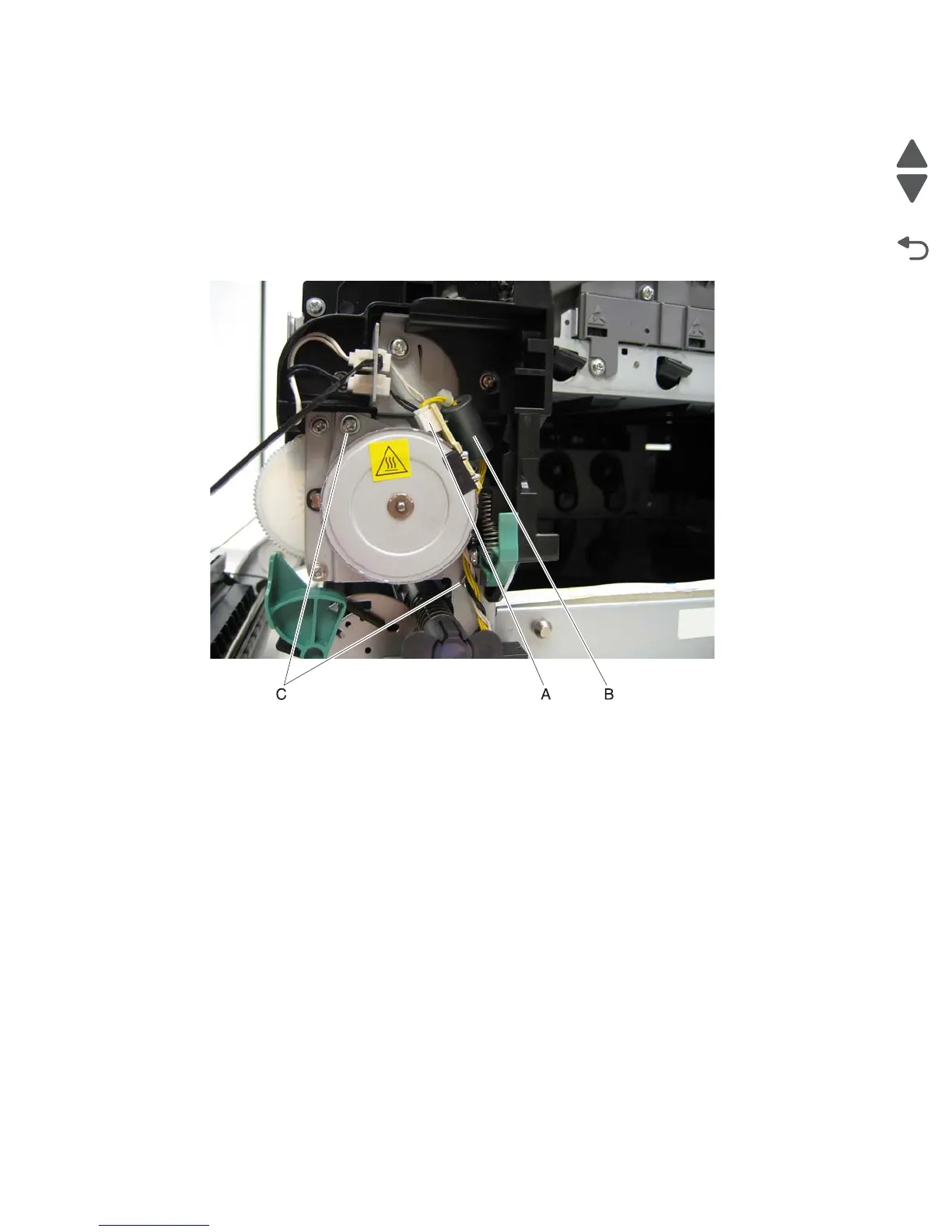

Fuser drive motor assembly removal

1. Open the front cover.

2. Remove the right cover. See “Right cover removal” on page 4-7.

3. Disconnect the cable (A) from the fuser drive motor assembly.

Note: If the toroid (B) is removed from the cable, be sure to reinstall the toroid when reconnecting the

cable.

4. Remove the two screws (C).

5. Remove the fuser drive motor assembly.

Default Chapter3
